NCH84B03AZ

ComboHob

Name: NCH84B03AZ
Brand: AEG
SKU: NCH84B03AZ

Product details

PDF Product Fiche

hidden

Incl. VAT

hidden

Monitor product

True

Lowest price last 30 days:

Frame TypeStatement Frame Matt Black

Dimensions (mm) (WxD)830x520

Built-in Dimensions (mm) (HxWxD)225x750 - 780x490

Air Outlet (mm)220

Grease Filter TypeAluminium mesh

Number of Grease Filters2

Aperture Cut Out (mm)5

Energy RatingA+

Specification

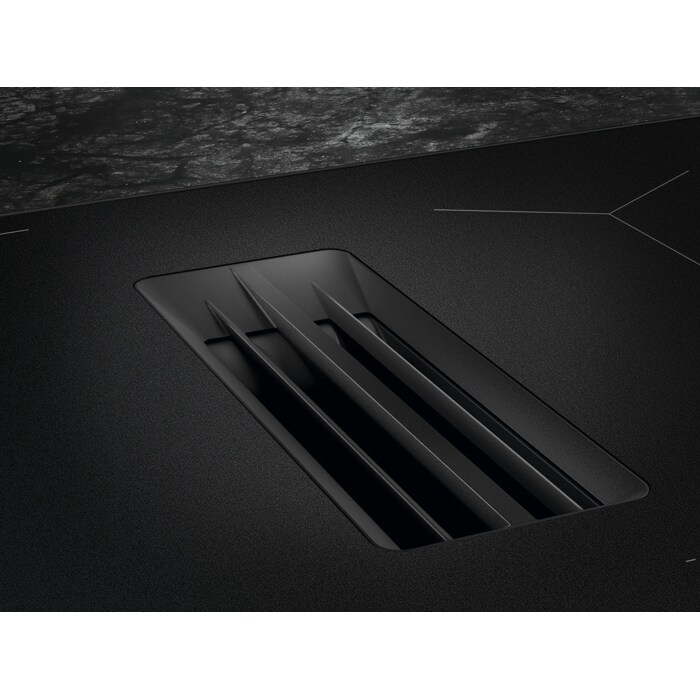

ComboHob: 2-in-1 combination of hob and extractor fan.
SaphirMatt® hob is up to four times more scratch-resistant.
Residual heat indicators: Show when the hob surface is still hot after use.
PowerBoost: Gives an instant increase in temperature allowing water to boil in less than 90 seconds.
Child lock safety function.
Auto safety switch off: The power automatically turns off if a cooking zone is left on for too long.
Bridging function: Combines 2 cooking zones allowing flexibility for any size pan.
Inverter motor
Grease filter indicator.
Charcoal filter indicator.
Grease filter type and number: Aluminium mesh, 2
Minute minder: Set the minute minder to remind you which dishes have finished cooking.
EcoTimer™: Saves energy by using the residual heat from the hob, turning off the cooking zone before the end of your timer to boost efficiency.
Automated extraction: Auto mode adjusts the extractor fan based on hob temperature changes, so you can focus entirely on cooking.
Pause functionality allows you to take short breaks without losing your cooking settings.
Extraction mode: A ducting kit is attached to the hood to extract cooking vapours externally, keeping the kitchen free from odours.
Recirculation mode: The hood captures cooking vapours, filters the air through the charcoal filter, and recirculates clean air back into the kitchen, keeping it free from odours.

Performance

Grease Filter Type: Aluminium mesh
Number of Grease Filters: 2
Left Front - Power/Diameter: 2300/3200W/210mm
Left Rear - Power/Diameter: 2300/3200W/210mm
Right Front - Power/Diameter: 1400/2500W/145mm
Right Rear - Power/Diameter: 1800/2800W/180mm
Number of cooking zones: 4
Hob Type: Induction ExtractorHob
Ducted Extraction Rate - Min/Max/Intensive (m³/h): 650/550/270
Hob2Hood Connection: Yes

Installation

Dimensions (mm) (WxD): 830x520
Built-in Dimensions (mm) (HxWxD): 225x750 - 780x490
Air Outlet (mm): 220
Aperture Cut Out (mm): 5
Cord Length (m): N/A
Plug or Hardwired: Hardwired connection only
Extraction Type - Recirculation: Yes
Extraction Type - Ducted (External): Yes
Net Weight: 17.8
Gross Weight (Kg): 22.2

Energy

Energy Rating: A+
Fluid Dynamic Efficiency Rating: A
Grease Filter Efficiency Rating: B

Other

Product number (PNC): 949 598 491
Frame Type: Statement Frame Matt Black
Motor Type: Brushless
Bar Code: 7333394075815
Series: 6000
Recirculated Extraction Rate - Min/Max/Intensive (m³/h): 250/480/585
Ducted Noise Level - Min/Max/Intensive (dB): 50/66/69
Information for professionals about non-destructive disassembly according to Regulation EU 66/2014

Product details

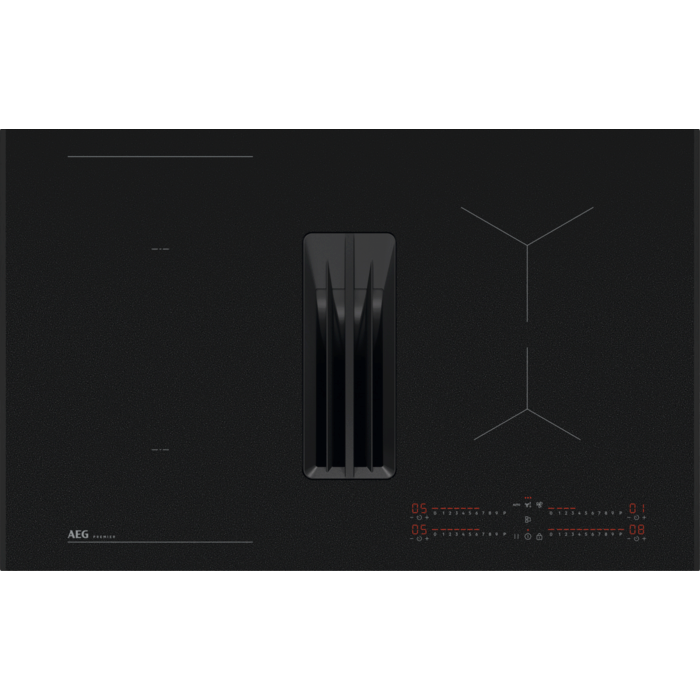

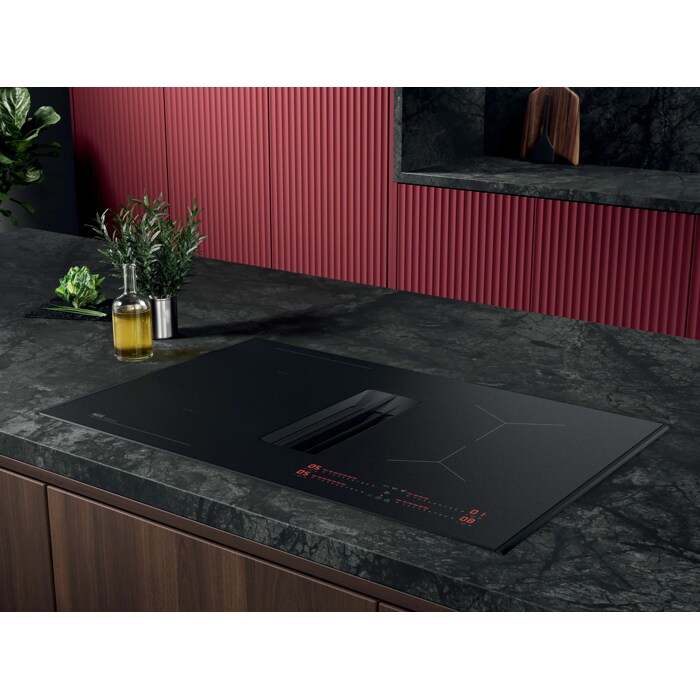

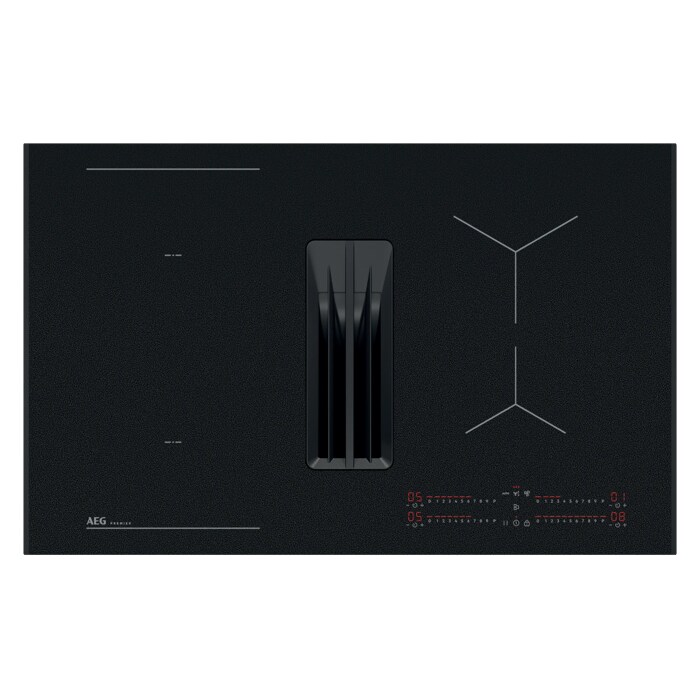

The 6000 Bridge Extractor Hob combines an induction hob to fit a 60cm cabinet, with a powerful built-in extractor for optimal air flow. It also has a Bridge function, allowing you to combine two cooking zones into one for larger cookware.

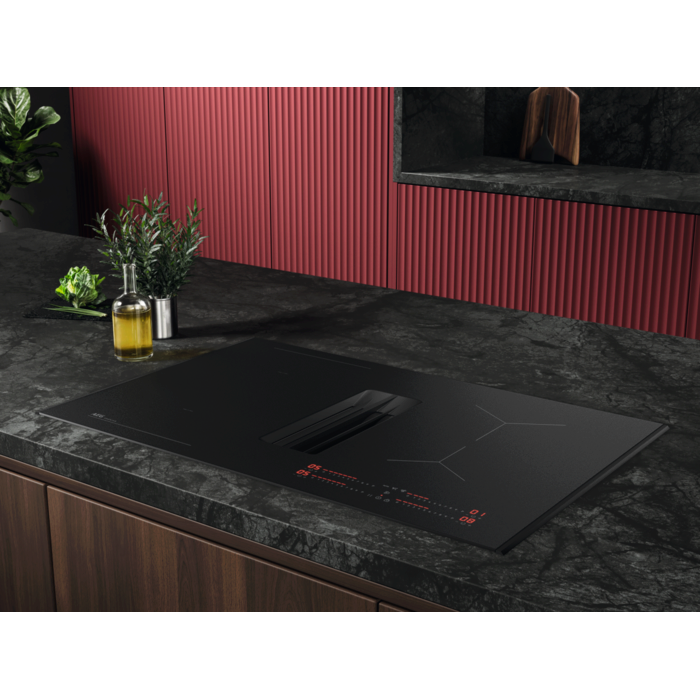

The Bridge Extractor Hob. For greater kitchen freedom

The Bridge Extractor Hob combines an induction hob for 60cm cabinets with a powerful built-in extractor for optimal airflow. Its Bridge function merges two cooking zones at the same temperature, ideal for bigger pots or plancha grill.

OdourClean Plus Carbon Filter. Clean and re-use multiple times

The Grease Filter and OdourClean Plus Carbon Filter are easy to clean in the dishwasher, so your kitchen air stays fresh, and your fan runs at its best for longer. Carbon filters can after cleaning be regenerated up to 8 times for extended life up to 3 years.

*The stated lifespan is an estimate based on internal testing. Performance may vary depending on individual usage patterns and conditions; actual lifespan may be shorter or longer.

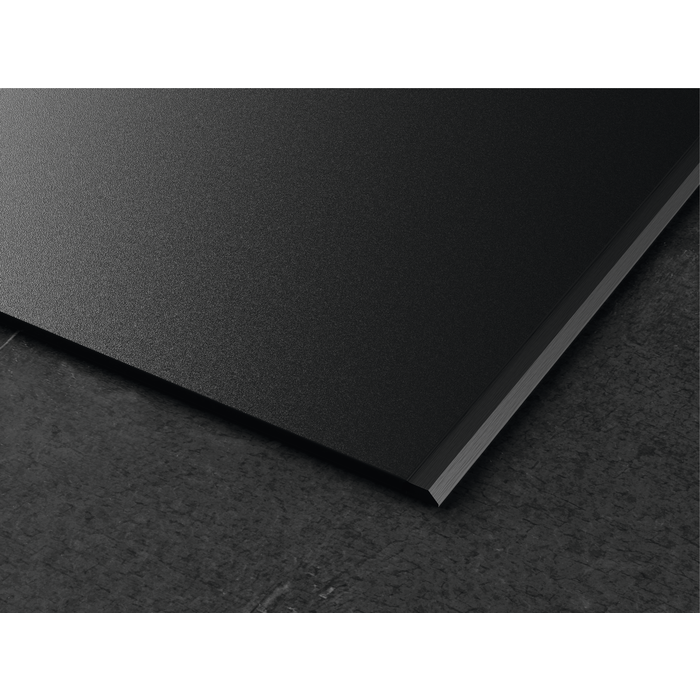

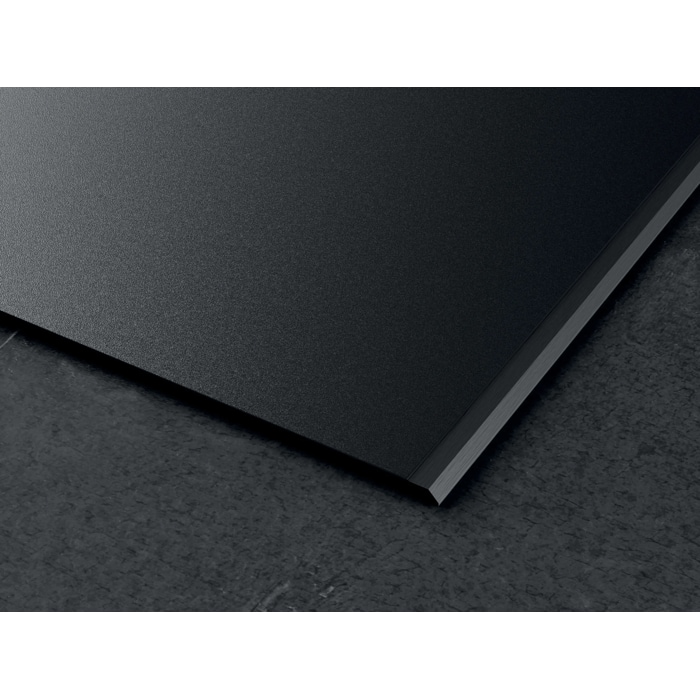

Modern, matt black beauty. Our most scratch-resistant surface

A modern design statement at the heart of your kitchen. The SaphirMatt® hob’s matt black finish enhances its minimalist aesthetic. Made with our most scratch-resistant, fingerprint-resistant surface for lasting, effortless beauty.

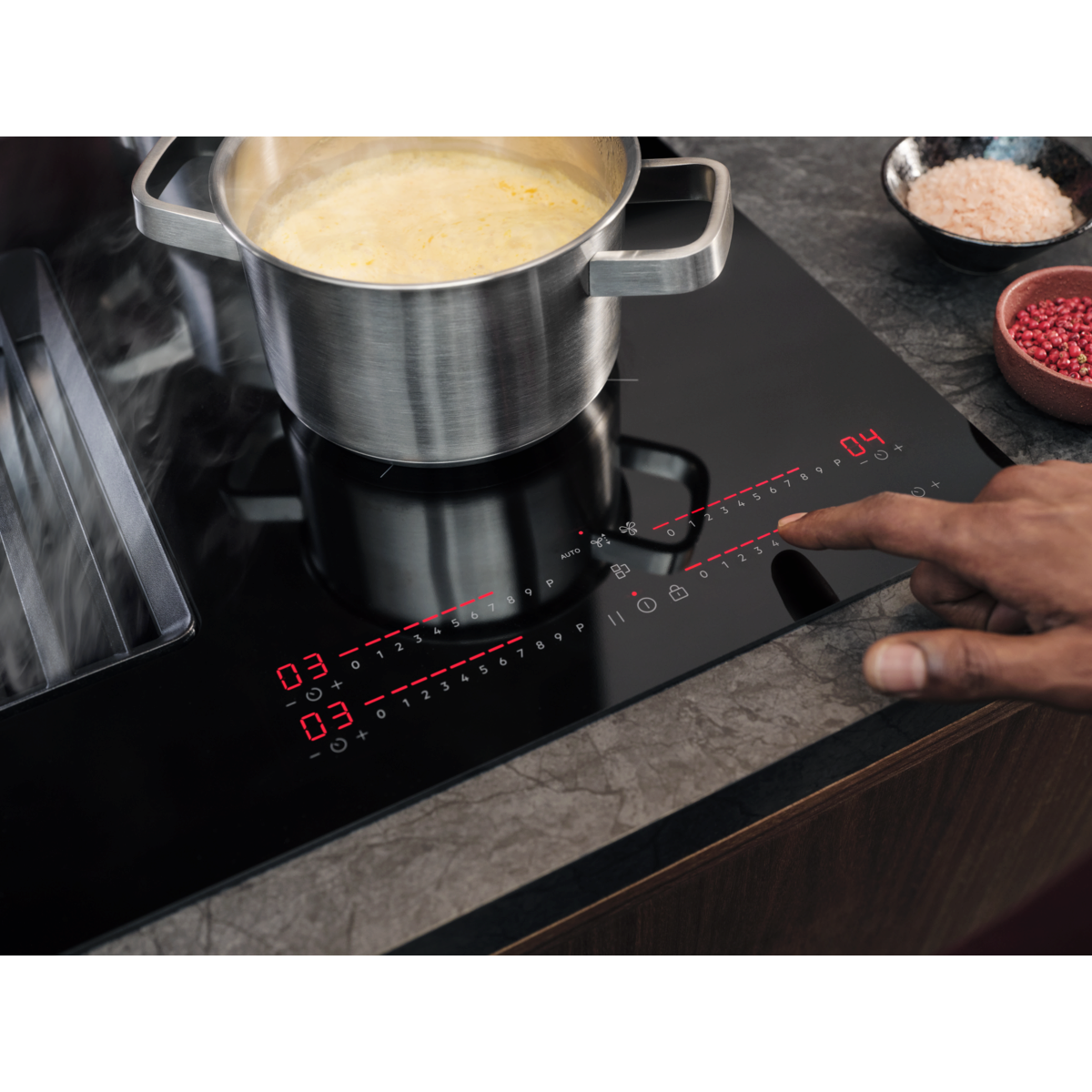

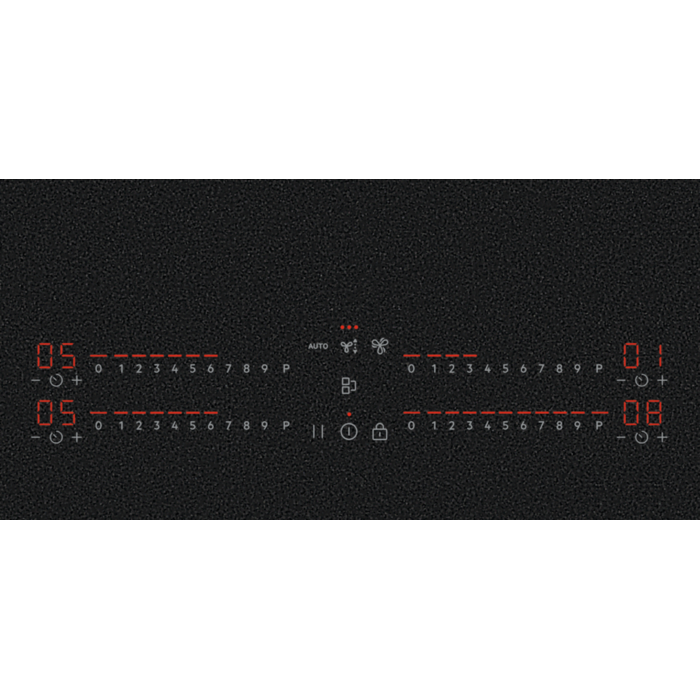

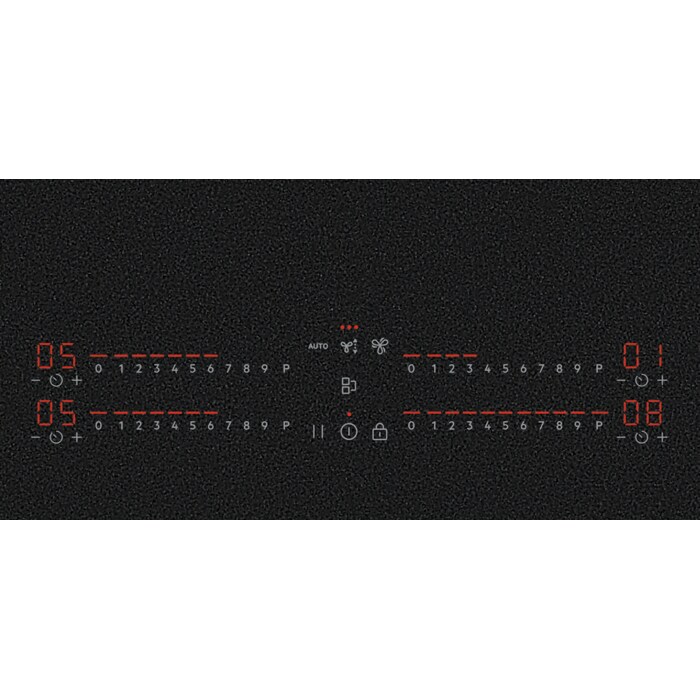

4 Individual Zone Controls. Unlimited cooking options

4 Individual Zone Controls, with 9 power levels, allow you to Individually control 4 different cooking areas and set separate timers for each. Other functions include power boost, active touch, child lock and automatic extractor control.

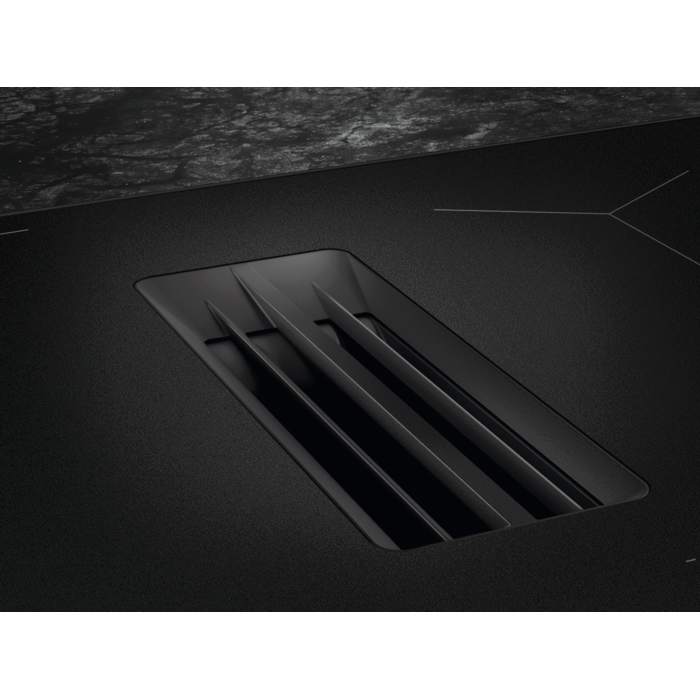

Automatic Extractor Control. Adjusts as you cook

Automatic Extractor Control allows you to focus on what matters – cooking. The hob will automatically switch on and adjust the extraction level according to your cooking activities, keeping your kitchen fresh and hands free.
