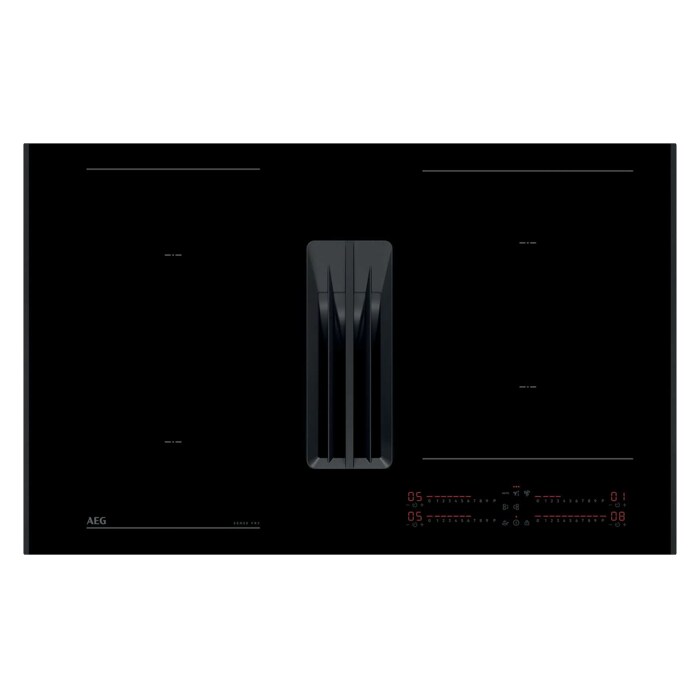

NCH84C23AB

ComboHob

Name: NCH84C23AB
Brand: AEG
SKU: NCH84C23AB

Product details

PDF Product Fiche

hidden

Incl. VAT

hidden

Monitor product

True

Lowest price last 30 days:

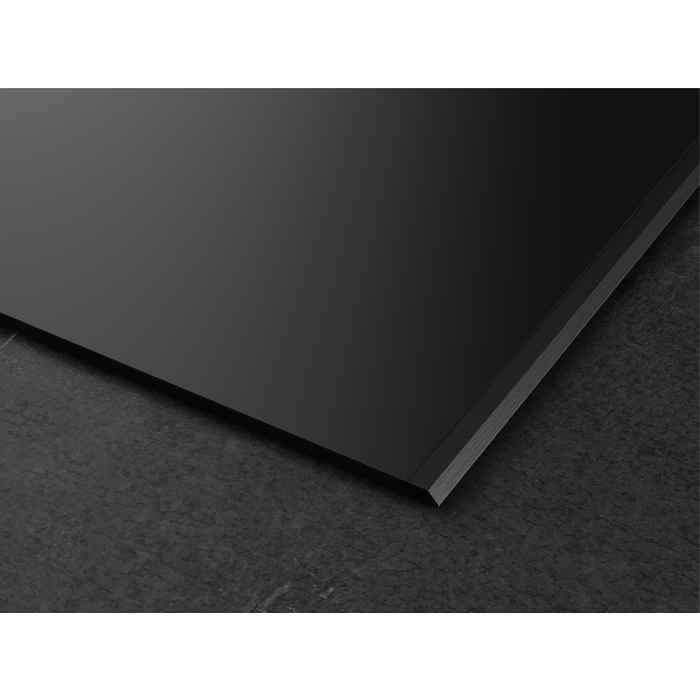

Frame TypeStatement Frame Matt Black

Dimensions (mm) (WxD)830x520

Built-in Dimensions (mm) (HxWxD)225x750 - 780x490

Air Outlet (mm)220

Grease Filter TypeAluminium mesh

Number of Grease Filters2

Aperture Cut Out (mm)5

Energy RatingA+

Specification

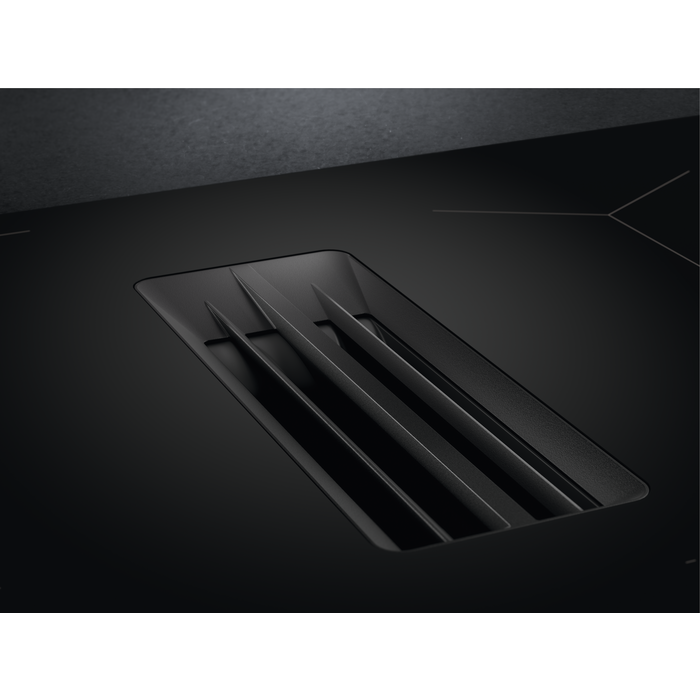

ComboHob: 2-in-1 combination of hob and extractor fan.
PowerBoost: Gives an instant increase in temperature allowing water to boil in less than 90 seconds.
Child lock safety function.
Auto safety switch off: The power automatically turns off if a cooking zone is left on for too long.
The bridging function: Combines 2 cooking zones on both sides of the hob allowing flexibility for any size pan.
Inverter motor
Grease filter indicator.
Charcoal filter indicator.
Grease filter type and number: Aluminium mesh, 2
Minute minder: Set the minute minder to remind you which dishes have finished cooking.
EcoTimer™: Saves energy by using the residual heat from the hob, turning off the cooking zone before the end of your timer to boost efficiency.
Automated extraction: Auto mode adjusts the extractor fan based on hob temperature changes, so you can focus entirely on cooking.
Extraction mode: A ducting kit is attached to the hood to extract cooking vapours externally, keeping the kitchen free from odours.
Recirculation mode: The hood captures cooking vapours, filters the air through the charcoal filter, and recirculates clean air back into the kitchen, keeping it free from odors.

Performance

Grease Filter Type: Aluminium mesh
Number of Grease Filters: 2
Left Front - Power/Diameter: 2300/3200W/210mm
Left Rear - Power/Diameter: 2300/3200W/210mm
Right Front - Power/Diameter: 2300/3200W/180x210mm
Right Rear - Power/Diameter: 2300/3200W/180x210mm
Number of cooking zones: 4
Hob Type: Induction ExtractorHob
Ducted Extraction Rate - Min/Max/Intensive (m³/h): 650/550/270
Hob2Hood Connection: Yes

Installation

Dimensions (mm) (WxD): 830x520
Built-in Dimensions (mm) (HxWxD): 225x750 - 780x490
Air Outlet (mm): 220
Aperture Cut Out (mm): 5
Cord Length (m): 1.5
Plug or Hardwired: Hardwired connection only
Extraction Type - Recirculation: Yes
Extraction Type - Ducted (External): Yes

Energy

Energy Rating: A+
Fluid Dynamic Efficiency Rating: A
Grease Filter Efficiency Rating: B

Other

Product number (PNC): 949 598 230
Frame Type: Statement Frame Matt Black
Motor Type: Brushless
Bar Code: 7333394058511
Series: 7000
Recirculated Extraction Rate - Min/Max/Intensive (m³/h): 250/480/585
Ducted Noise Level - Min/Max/Intensive (dB): 50/66/69
Information for professionals about non-destructive disassembly according to Regulation EU 66/2014

Product details

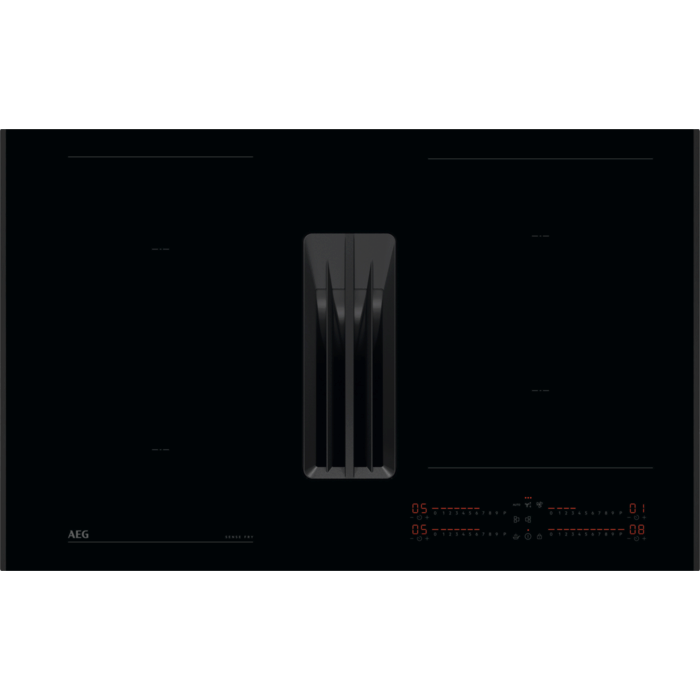

The 7000 SenseFry Extractor Hob lets you know when your frying pan reaches the optimal temperature and maintains even heat for perfect taste and texture. It also has a powerful built-in extractor that rids your kitchen of steam and odours.

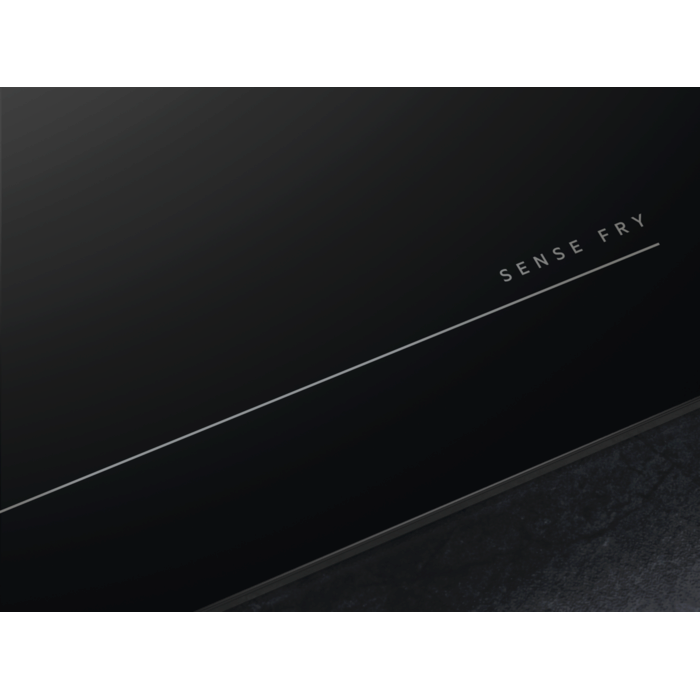

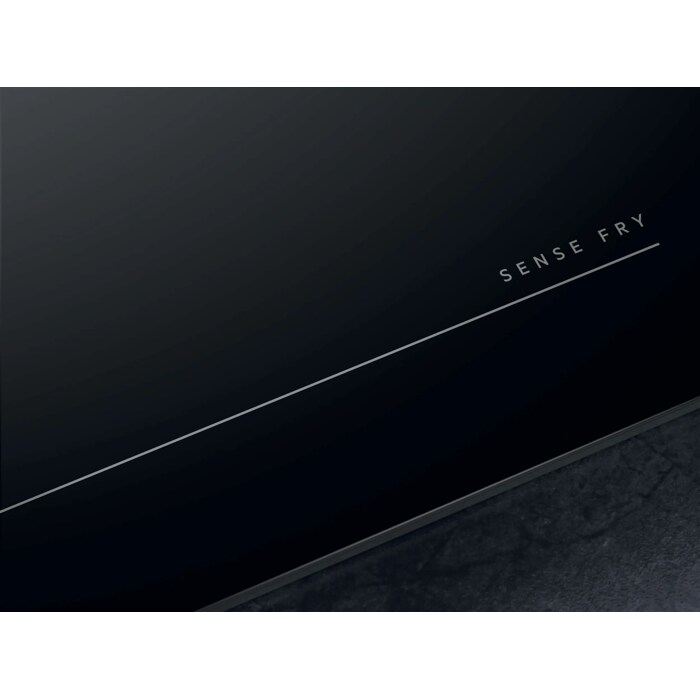

The SenseFry Extractor Hob. Frying just got easier

SenseFry removes guesswork when frying. It lets you know when the pan is at the right temperature and maintains optimal heat level for excellent results. No adjustments needed along the way. No more burned food and no overcooked steaks.

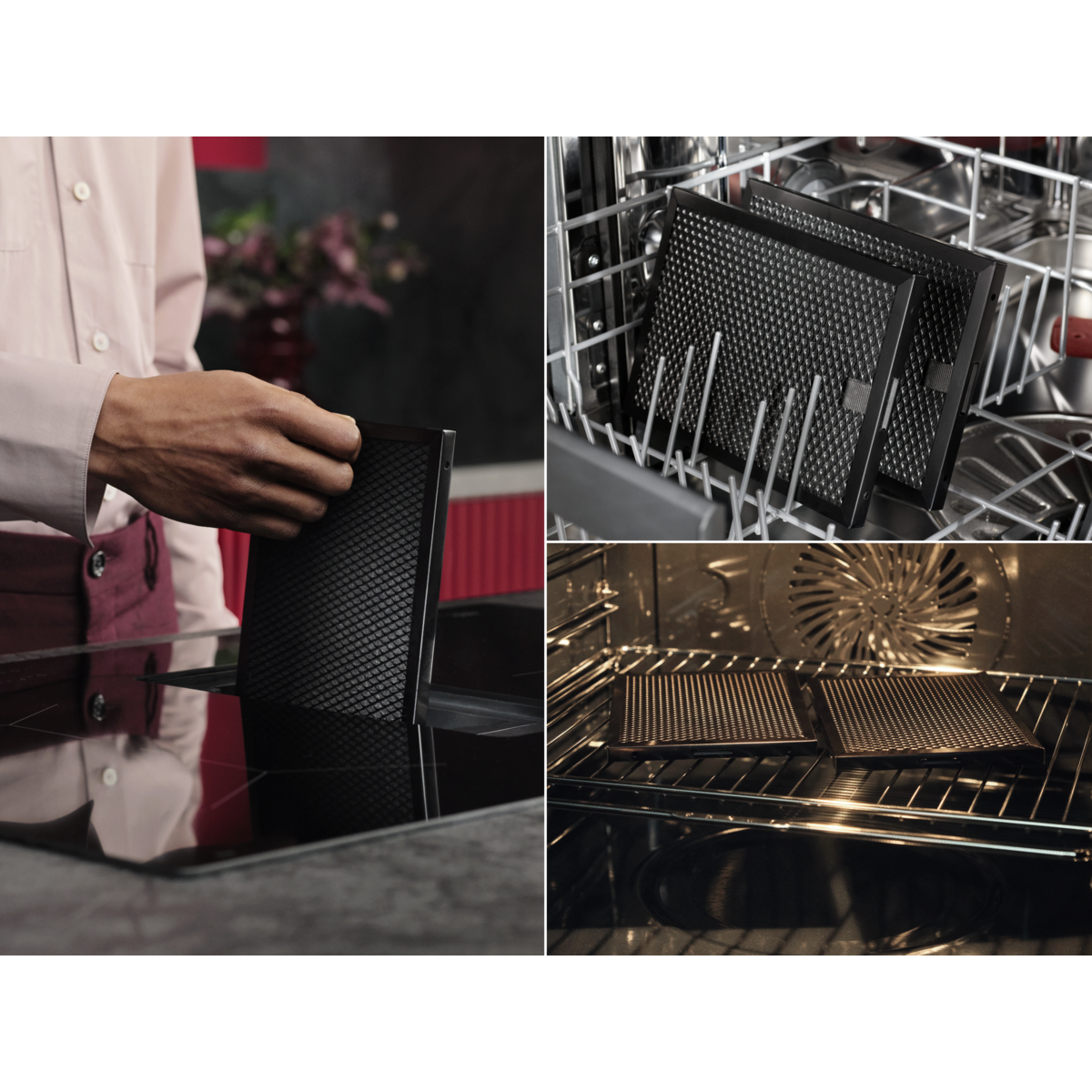

Long-Life Carbon Filter. Clean and re-use multiple times

The Grease Filter and Long-Life Carbon Filter are easy to clean in the dishwasher, so your kitchen air stays fresh, and your fan runs at its best for longer. Carbon filters can after cleaning be regenerated up to 8 times for extended life up to 3 years.

DoubleBridge. Makes more of your hob

With DoubleBridge, you can combine two cooking zones on two different cooking areas. Perfect for accommodating cookware of various sizes, the feature also aligns temperature and time settings for maximum flexibility in the kitchen.

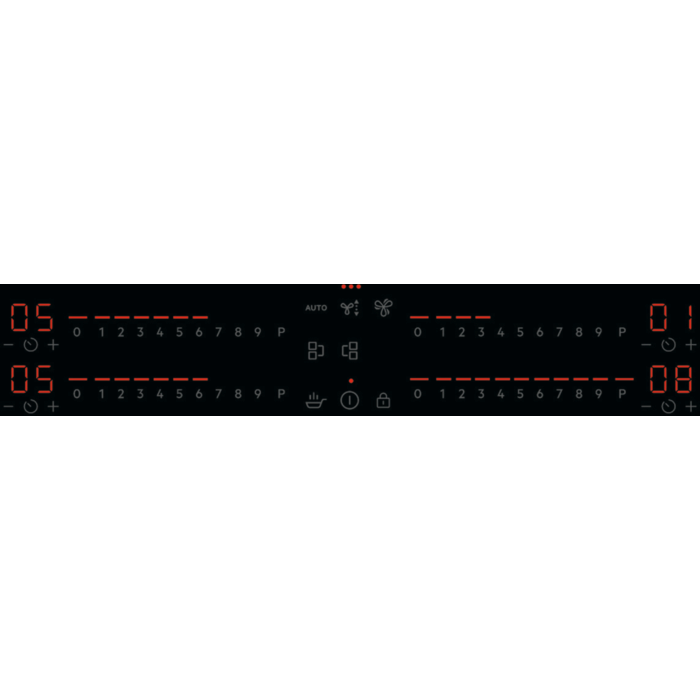

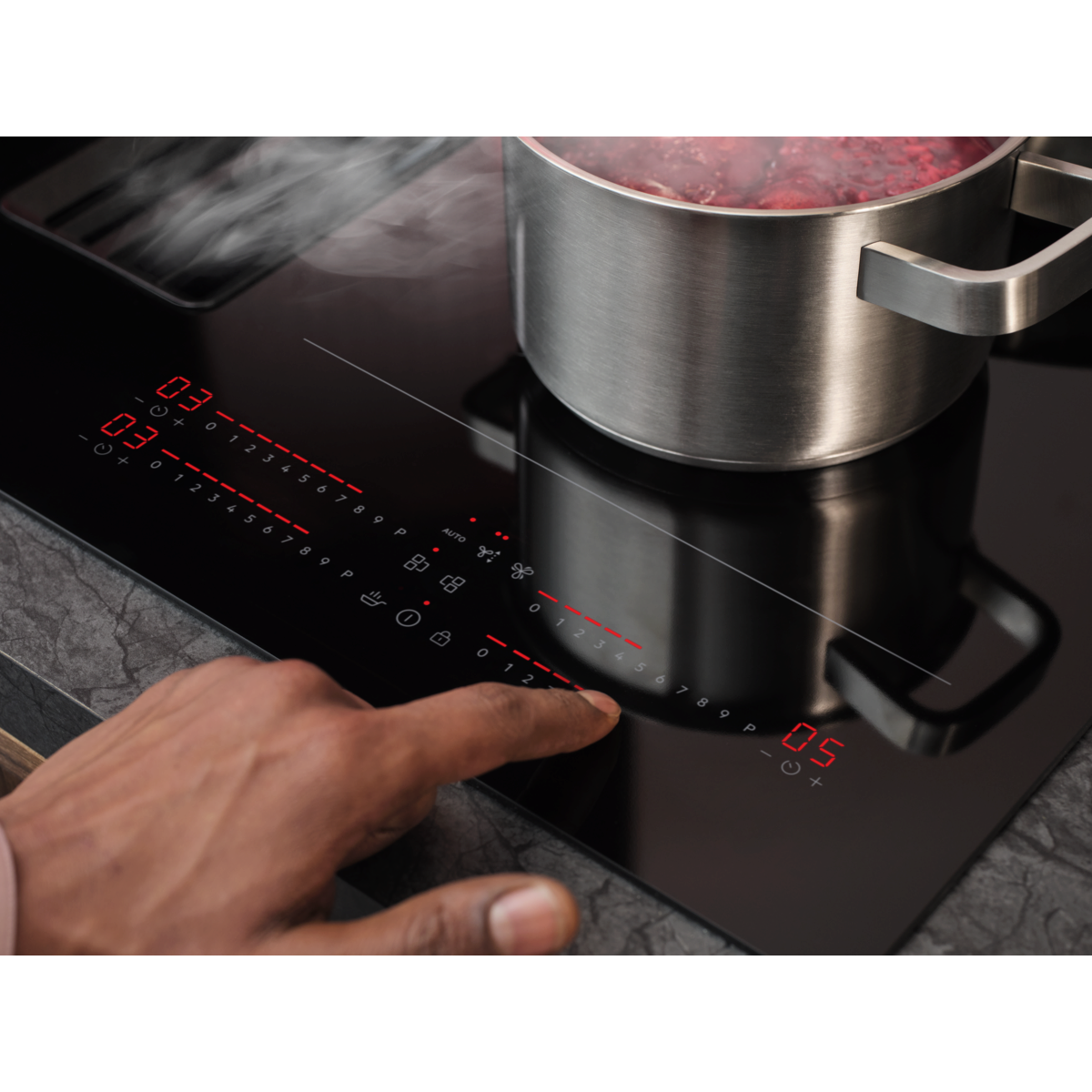

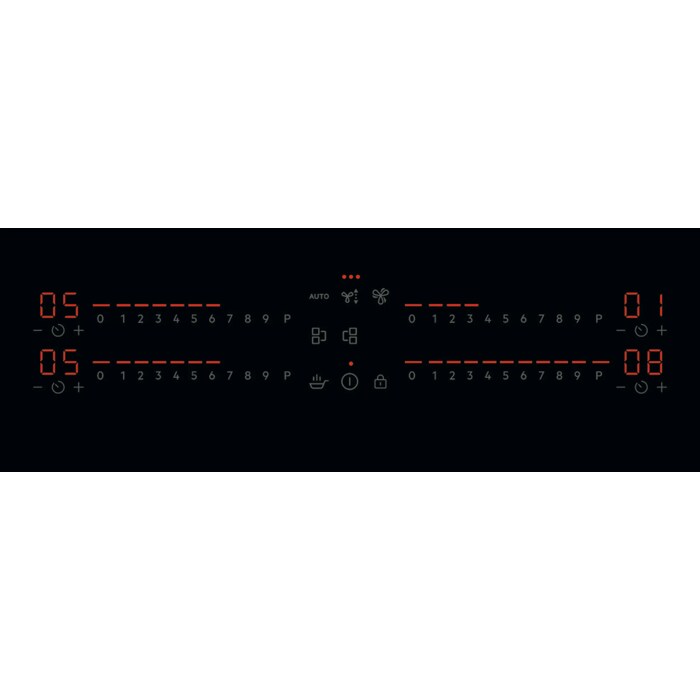

4 Individual Zone Controls. Unlimited cooking options

4 Individual Zone Controls, with 9 power levels, allow you to Individually control 4 different cooking areas and set separate timers for each. Other functions include power boost, active touch, child lock and automatic extractor control.

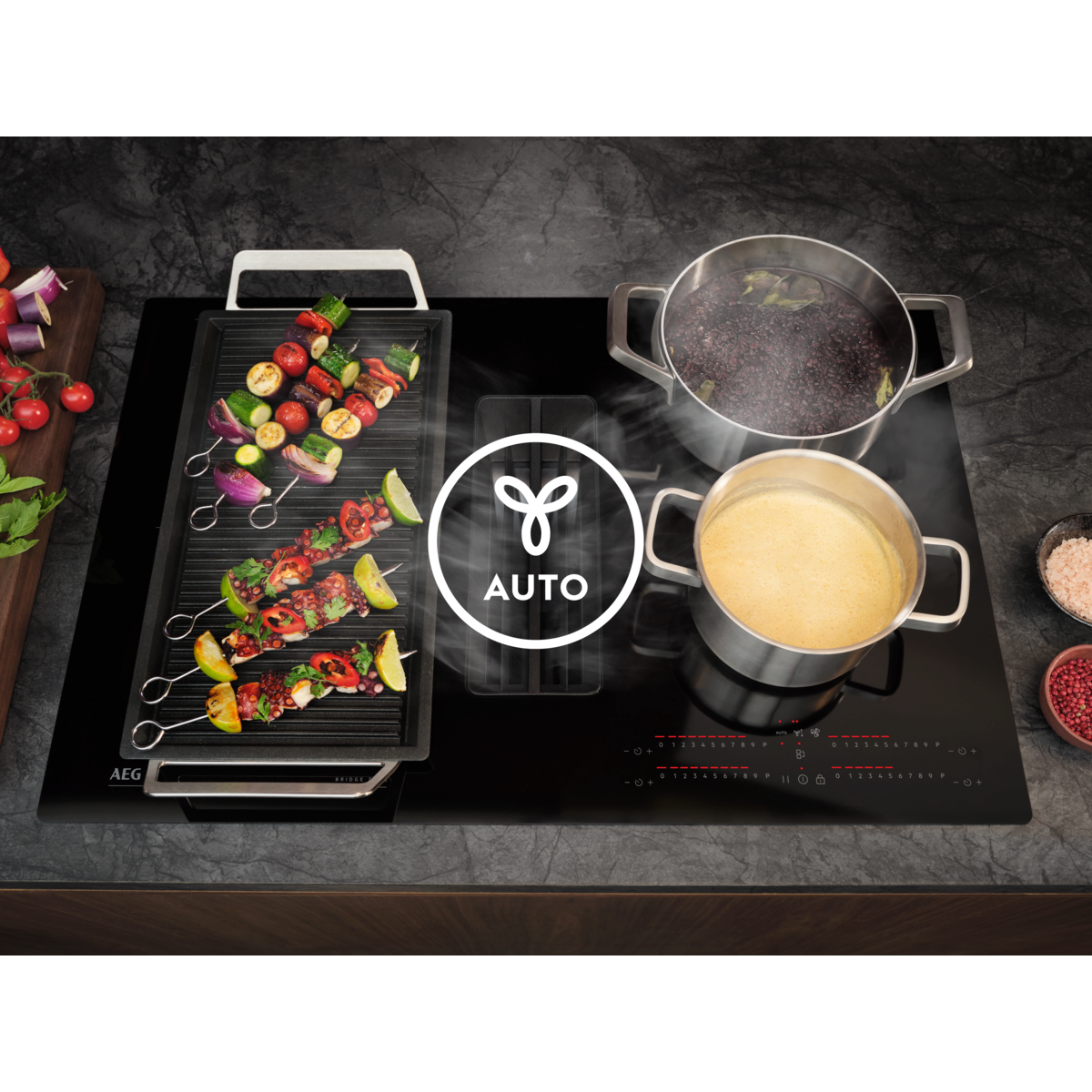

Automatic Extractor Control. Adjusts as you cook

Automatic Extractor Control allows you to focus on what matters – cooking. The hob will automatically switch on and adjust the extraction level according to your cooking activities, keeping your kitchen fresh and hands free.
