L7WC84636BI

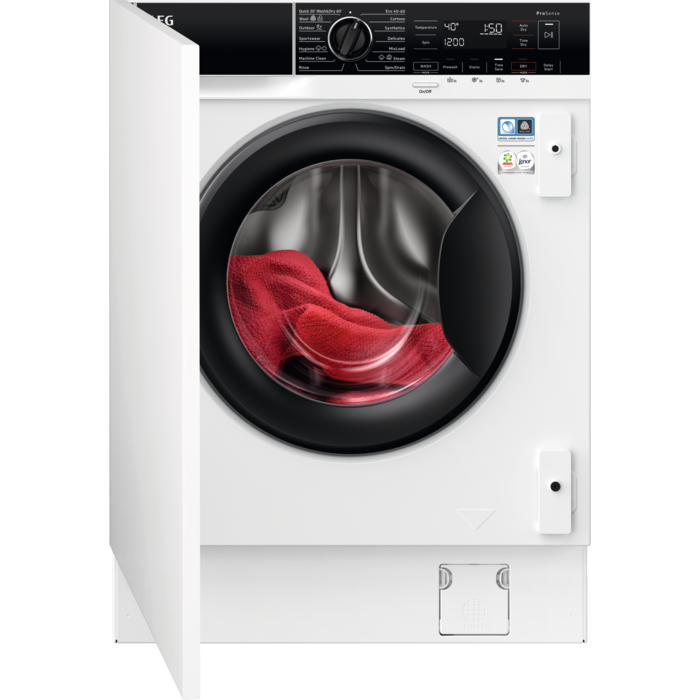

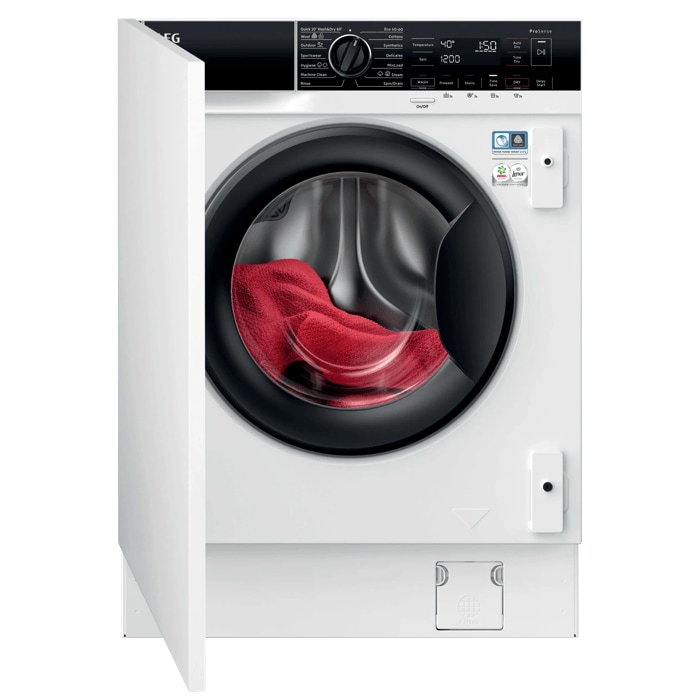

Integrated washer dryer

Name: Integrated washer dryer
Brand: AEG
SKU: L7WC84636BI

PDF Product Fiche

Energy Rating (Wash&Dry)D

Washing Capacity (Kg)8

Drying Capacity (kg)4.0

Dryer TypeWater condense

Program ListCottons, Delicates, Eco 40-60, Hygiene, Machine Clean, Mixload, OutDoor, Quick 20 Wash&Dry 60, Rinse, Spin/Drain, Sport Wear, Steam, Synthetics, Wool

Dimensions (mm) (HxWxD)819x596x553(max)

Noise Rating (dB)A

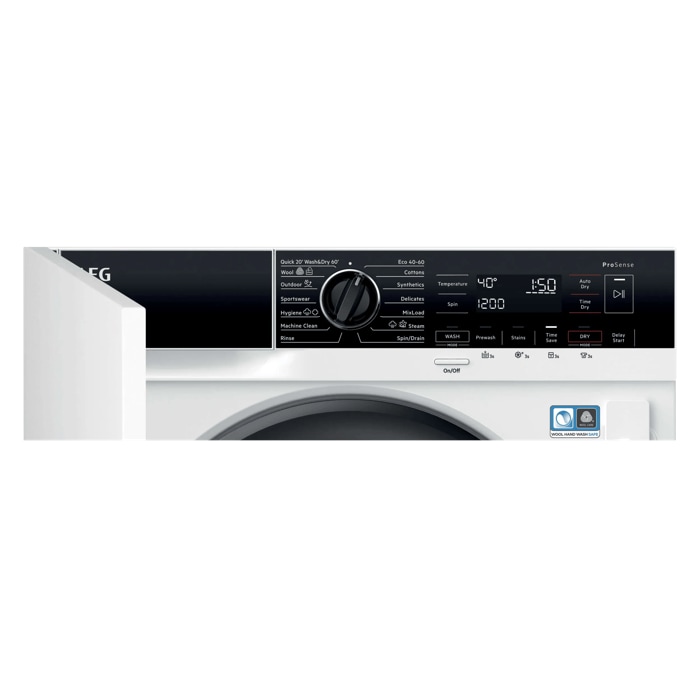

Push Button FunctionsAutodry, Delayed Start, Dry mode, Drying Time, ON/OFF, Prewash, SPIN SELECTION, STAIN, Start/Pause, TEMP SELECTION, Time saving, Wash Mode

Product documents

spec sheetDownload PDF

product user manualDownload PDF

pdf Product FicheDownload PDF

pdf Energy labelDownload PDF

Installation specifications

Installation chartOpen image

Connected Product

Product Data InformationOpen page

Specification

Washing capacity: 8 kg
Drying capacity: 4.0 kg
1600 RPM spin speed
Cotton Programmes: Includes Cotton Eco, Cotton & Prewash, and Cotton drying
Synthetic Programmes: Includes synthetic wash and synthetic drying
Delicate Programmes: Includes delicate wash and delicate rinses
Wool Plus Programme: The only wool programme in the market with a cool down at the end of the wash phase preventing chill-shock when the cold rinse begins, ensuring shrinkage is minimised.
Easy iron programme: By keeping your wash load moving and using a cool down phase with cold water, this programme protects delicate and synthetic fabrics from developing permanent creases.
Drying time option
Stain Action Option: The stain option allows you to use stain remover in the pre-wash compartment of the detergent drawer, it is then added at the correct stage of the wash cycle.
Sensitive Option: Designed specifically for people who are extra sensitive to dust and pollen. Works on cotton and synthetic programmes where fabric is gently moved around and has an extra rinse option so particles are rinsed out effectively.
Aqua Control and Alarm: Aqua Control is an internal system which monitors the water level to detect leakage.
Automatic Child Safety: Keypads can be locked to ensure temperatures and programme selections cannot be changed - making certain your laundry is always safe.
A class wash performance

Performance

Washing Capacity (Kg): 8
Drying Capacity (kg): 4.0
Dryer Type: Water condense
Max Spin Speed (rpm): 1600
Drum Volume (L): 52
Motor Type: Inverter Motor+

Installation

Plug or Hardwired: U.K.
Depth max (mm): 553
Wheels/Feet: 4 adjustable feet
Cord Length (m): 1.7
Inlet Hose Length (cm): 150
Outlet Hose Length (cm): 140
Total Electricity Loading (W): 2100
Voltage (V): 230-240
Recommended fuse (A): 13
Net weight (kg): 72.5
Gross weight (kg): 74

Energy

Energy Rating (Wash&Dry): D
Noise Rating (dB): A
Energy Rating: B
Energy Consumption per 100 wash cycles (kWh): 54
Energy Consumption per 100 wash/dry cycles (kWh): 217
Noise level, dB(A) (EU 2017/1369): 70
Frequency (Hz): 50

Other

Product number (PNC): 914 606 425
Program List: Cottons, Delicates, Eco 40-60, Hygiene, Machine Clean, Mixload, OutDoor, Quick 20 Wash&Dry 60, Rinse, Spin/Drain, Sport Wear, Steam, Synthetics, Wool
Dimensions (mm) (HxWxD): 819x596x553(max)

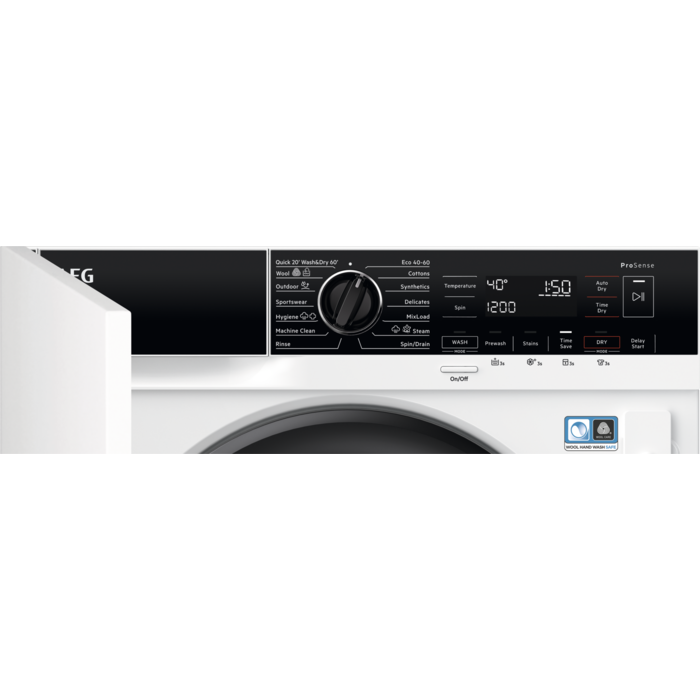

Push Button Functions: Autodry, Delayed Start, Dry mode, Drying Time, ON/OFF, Prewash, SPIN SELECTION, STAIN, Start/Pause, TEMP SELECTION, Time saving, Wash Mode
Woolmark: 801327023_woolmarkblue_ariellenor

GARMENTS REFRESHED*, WRINKLES REDUCED WITH STEAMREFRESH

Steam Refresh neutralises odours* and reduces wrinkles on garments, including delicates, in just 25 minutes. And if you like an extra boost of freshness, just add our aromatic steam fragrance. Giving it that just washed freshness.

* External test show neutralisation of cigarette smoke odour in a SteamRefresh cycle.

SPECIALCARE WASH-TO-DRY. CUSTOM CARE EVEN FOR WOOL AND DELICATES

SpecialCare Wash-to-Dry adapts to each fabric type for gentle yet effective cleaning. This Woolmark Blue certified machine washes and dries everyday items, delicates, and wool. It also restores the water protection of your outdoor garments.

PROSENSE® ADJUSTS THE CYCLE TIME, SAVING ENERGY AND WATER

Whether your laundry load is big or small, ProSense® technology automatically adjusts washing and drying times to load size, saving energy and water. For more efficient clothing care.

QUICK 20' WASH & DRY 60' — WHEN YOU'RE IN A HURRY

With Quick 20’ Wash&Dry 60’ you can wash and dry a 1kg mixed load in just one hour, all in one go. You can also choose the wash only cycle and get clean clothes in as quick as 20 minutes. Quick and convenient care when you’re in a hurry.

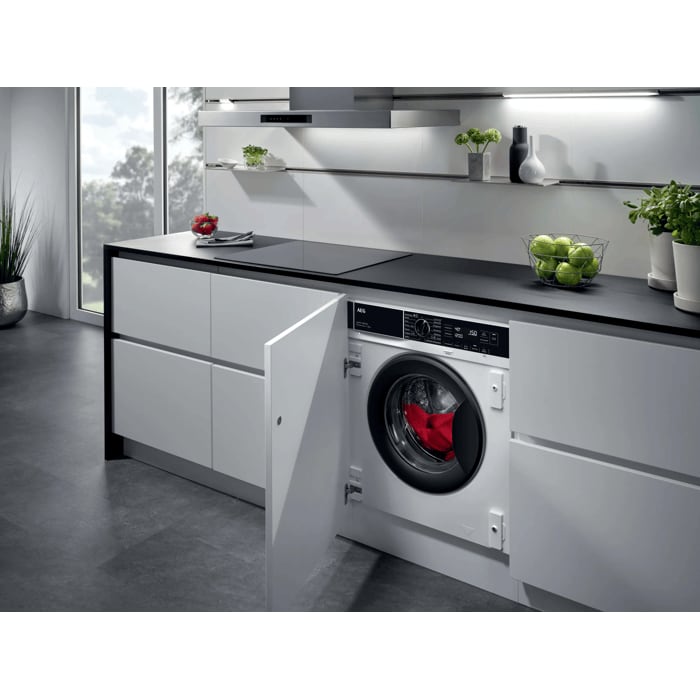

OUR LOW-NOISE MACHINE MINIMISES DISRUPTION TO DAILY ACTIVITIES

Engineered to run quietly, so you can do the laundry in a peaceful home. Won't interfere with cooking, conversation or mealtimes when installed in the kitchen. So enjoy your everyday activities while you wash your clothes.
