CCE84543FB

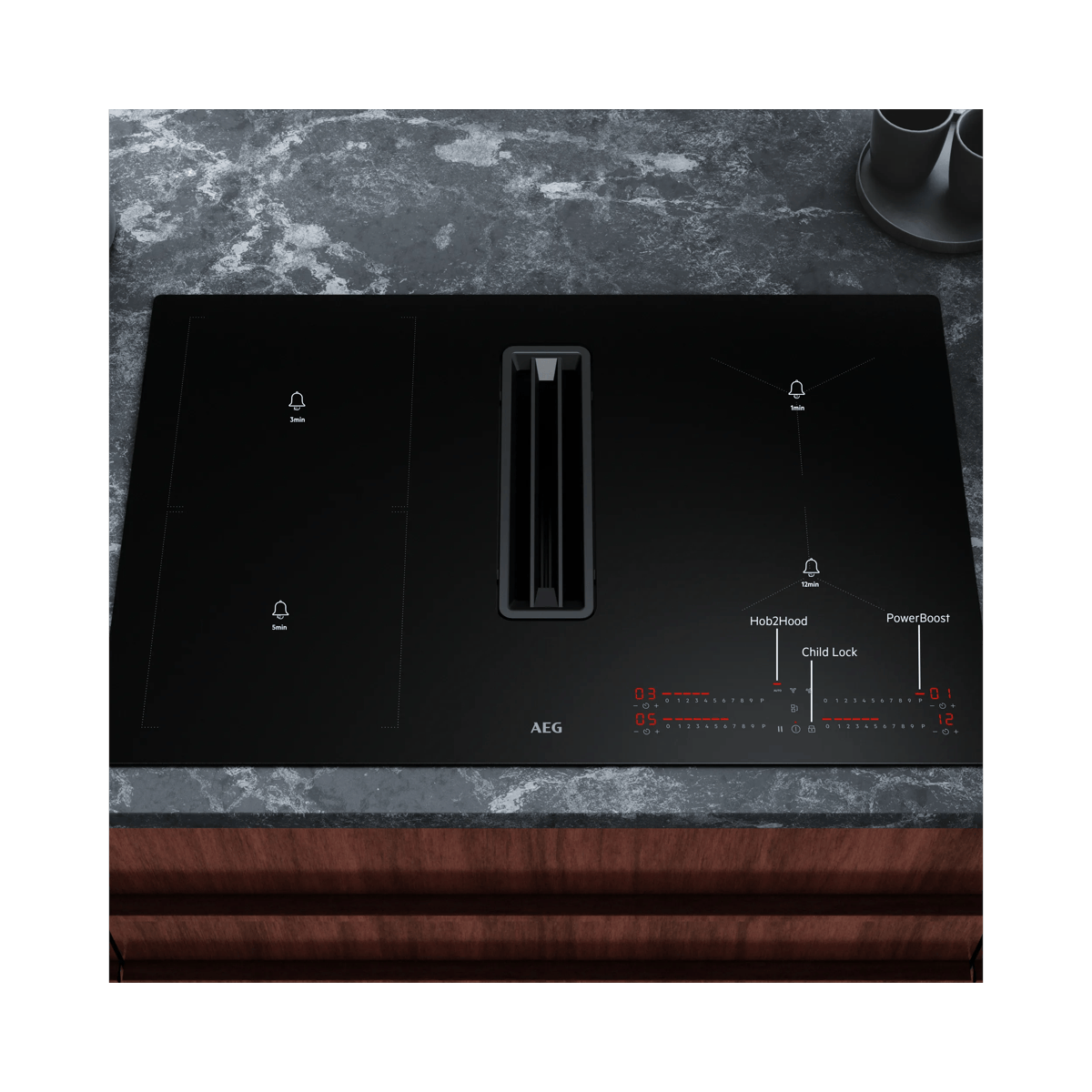

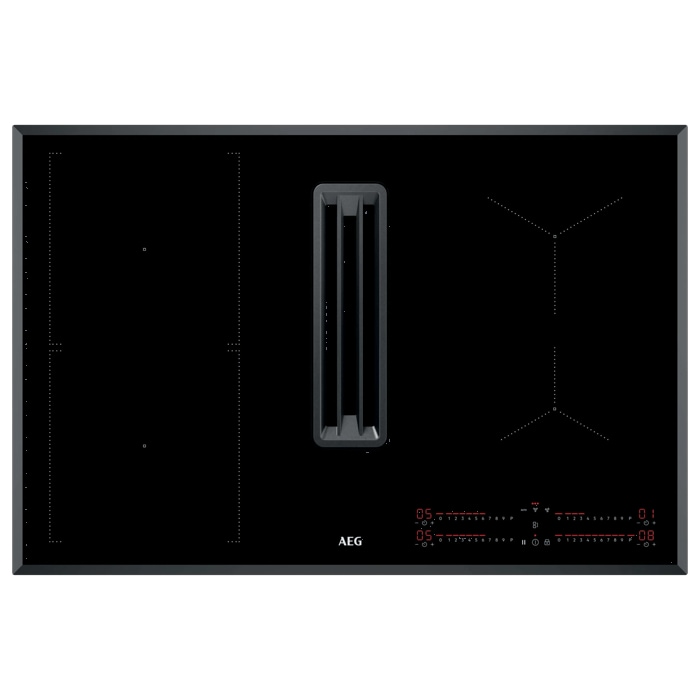

Combo-Hob Hood

Name: Combo-Hob Hood
Brand: AEG
SKU: CCE84543FB

PDF Product Fiche

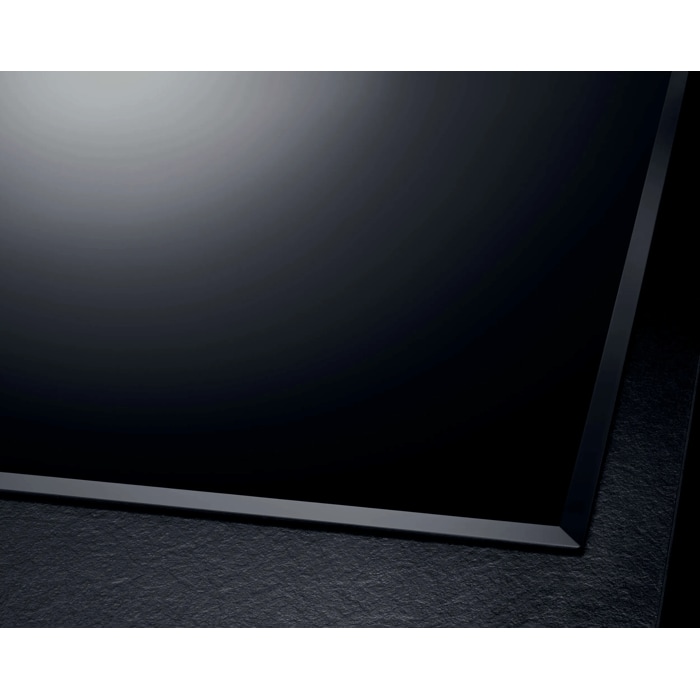

Frame TypeBevelled 4 Sides

Dimensions (mm) (WxD)780x520

Built-in Dimensions (mm) (HxWxD)205x750x490

Air Outlet (mm)220

Grease Filter TypeCombined Aluminium mesh

Number of Grease Filters2

Aperture Cut Out (mm)5

Energy RatingA+

Product documents

spec sheetDownload PDF

product user manualDownload PDF

pdf Product FicheDownload PDF

pdf Energy labelDownload PDF

Installation specifications

Installation chartOpen image

Connected Product

Product Data InformationOpen page

Specification

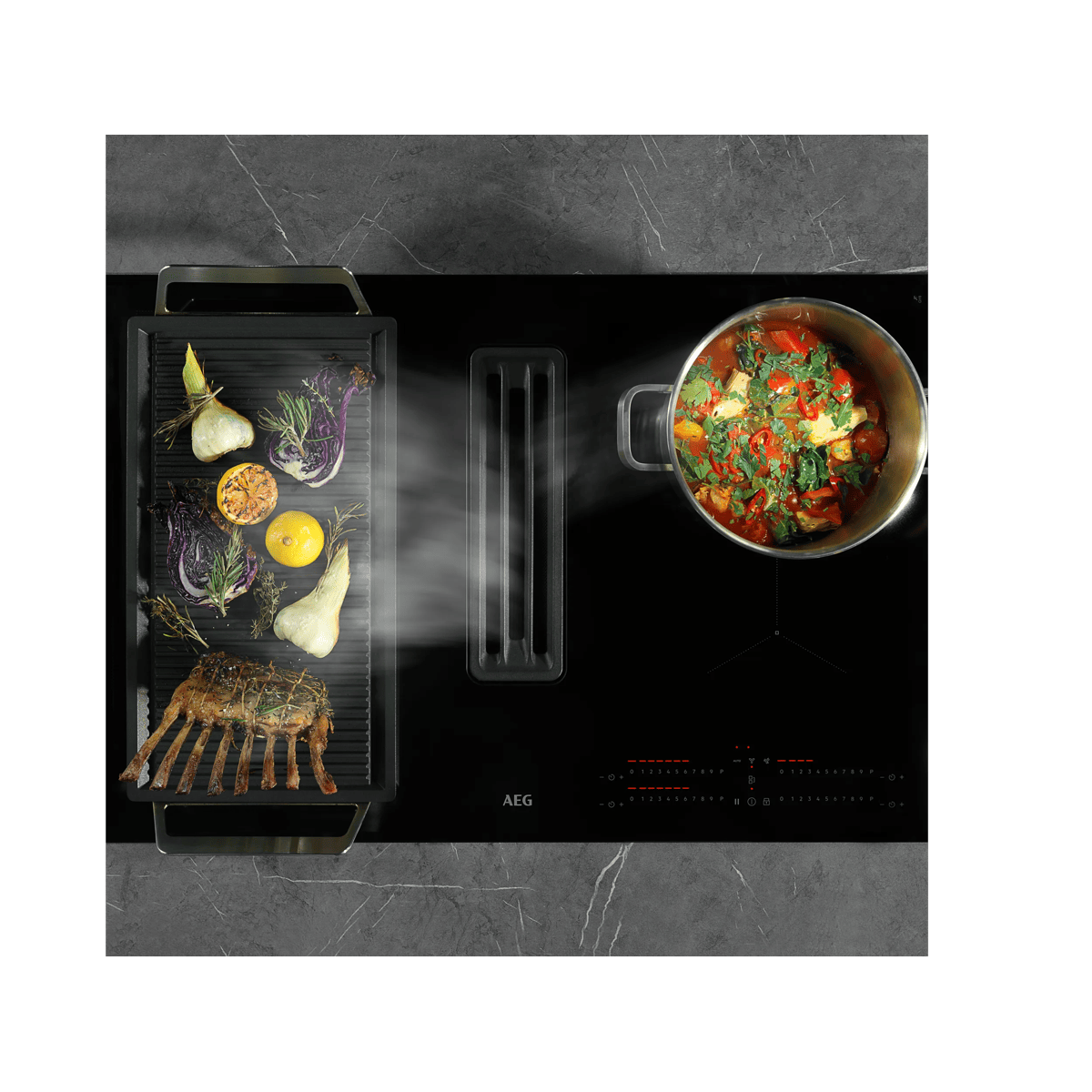

ComboHob: 2-in-1 combination of hob and extractor fan.
Residual heat indicators: Show when the hob surface is still hot after use.
PowerBoost: Gives an instant increase in temperature allowing water to boil in less than 90 seconds.
Child lock safety function.
Auto safety switch off: The power automatically turns off if a cooking zone is left on for too long.
Bridging function: Combines 2 cooking zones allowing flexibility for any size pan.
Inverter motor
Grease filter indicator.
Charcoal filter indicator.
Grease filter type and number: Combined Aluminium mesh, 2
Minute minder: Set the minute minder to remind you which dishes have finished cooking.
EcoTimer™: Saves energy by using the residual heat from the hob, turning off the cooking zone before the end of your timer to boost efficiency.
Automated extraction: Auto mode adjusts the extractor fan based on hob temperature changes, so you can focus entirely on cooking.
Pause functionality allows you to take short breaks without losing your cooking settings.

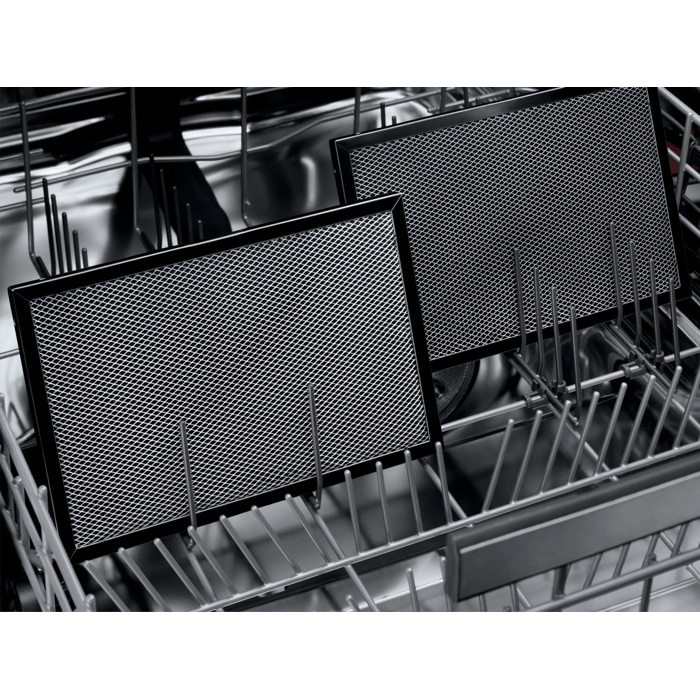

Metal grease filter: Traps grease, reducing odors, purifying air, and boosting performance. It's dishwasher safe and never needs replacing.
Recirculation mode: The hood captures cooking vapours, filters the air through the charcoal filter, and recirculates clean air back into the kitchen, keeping it free from odours.

Performance

Grease Filter Type: Combined Aluminium mesh
Number of Grease Filters: 2
Left Front - Power/Diameter: 2300/3200W/210mm
Left Rear - Power/Diameter: 2300/3200W/210mm
Right Front - Power/Diameter: 1400/2500W/145mm
Right Rear - Power/Diameter: 1800/2800W/180mm
Number of cooking zones: 4
Hob Type: Induction ExtractorHob
Ducted Extraction Rate - Min/Max/Intensive (m³/h): 630/500/260
Hob2Hood Connection: Yes

Installation

Dimensions (mm) (WxD): 780x520

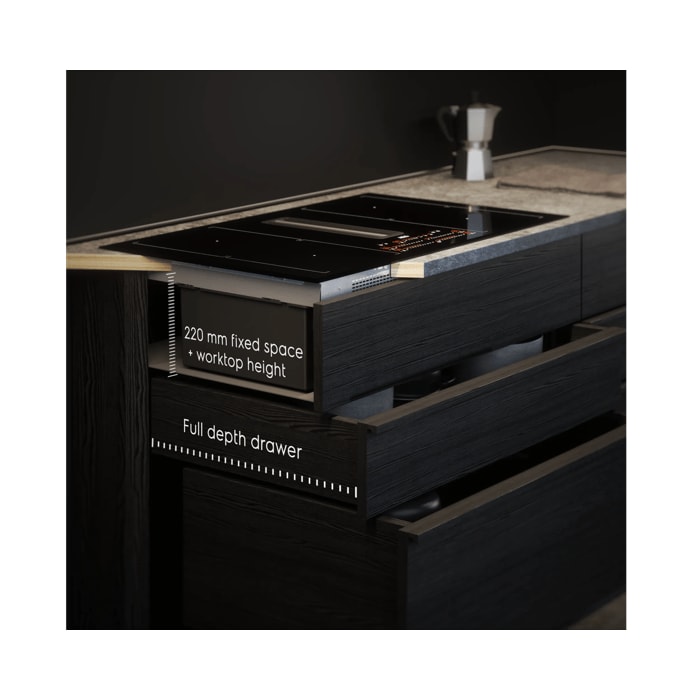

Built-in Dimensions (mm) (HxWxD): 205x750x490
Air Outlet (mm): 220
Aperture Cut Out (mm): 5
Cord Length (m): 1.5
Plug or Hardwired: Hardwired connection only
Extraction Type - Recirculation: Yes
Extraction Type - Ducted (External): No
Net weight (kg): 18.44
Gross weight (kg): 24.6

Energy

Energy Rating: A+
Fluid Dynamic Efficiency Rating: A
Grease Filter Efficiency Rating: B

Other

Product number (PNC): 949 597 970
Frame Type: Bevelled 4 Sides
Motor Type: Brushless
Bar Code: 7332543868100
Series: 6000
Recirculated Extraction Rate - Min/Max/Intensive (m³/h): 250/465/575
Ducted Noise Level - Min/Max/Intensive (dB): 48/64/69
Information for professionals about non-destructive disassembly according to Regulation EU 66/2014

Combine 2 cooking zones with Bridge

The Bridge function combines two cooking zones together to fit any large or long pan. Sharing the same temperature and time setting, the linked zones are ideal when you're cooking for dinner parties or bigger celebrations.

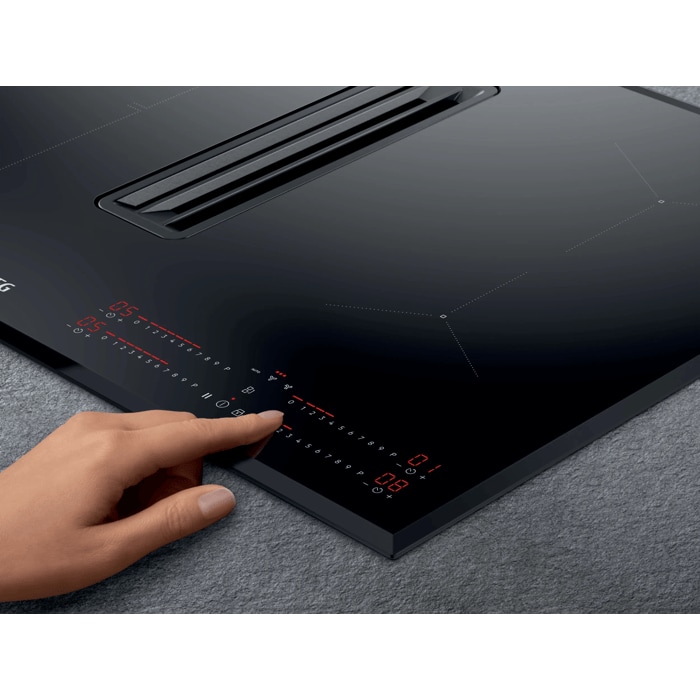

Get more from cooking with 4 Individual Zone Controls

4 Individual Zone Controls allow you to command 4 different cooking zones and set separate timers for each. Other functions include 9 power levels, power boost, active touch, child lock and Hob2Hood® control.

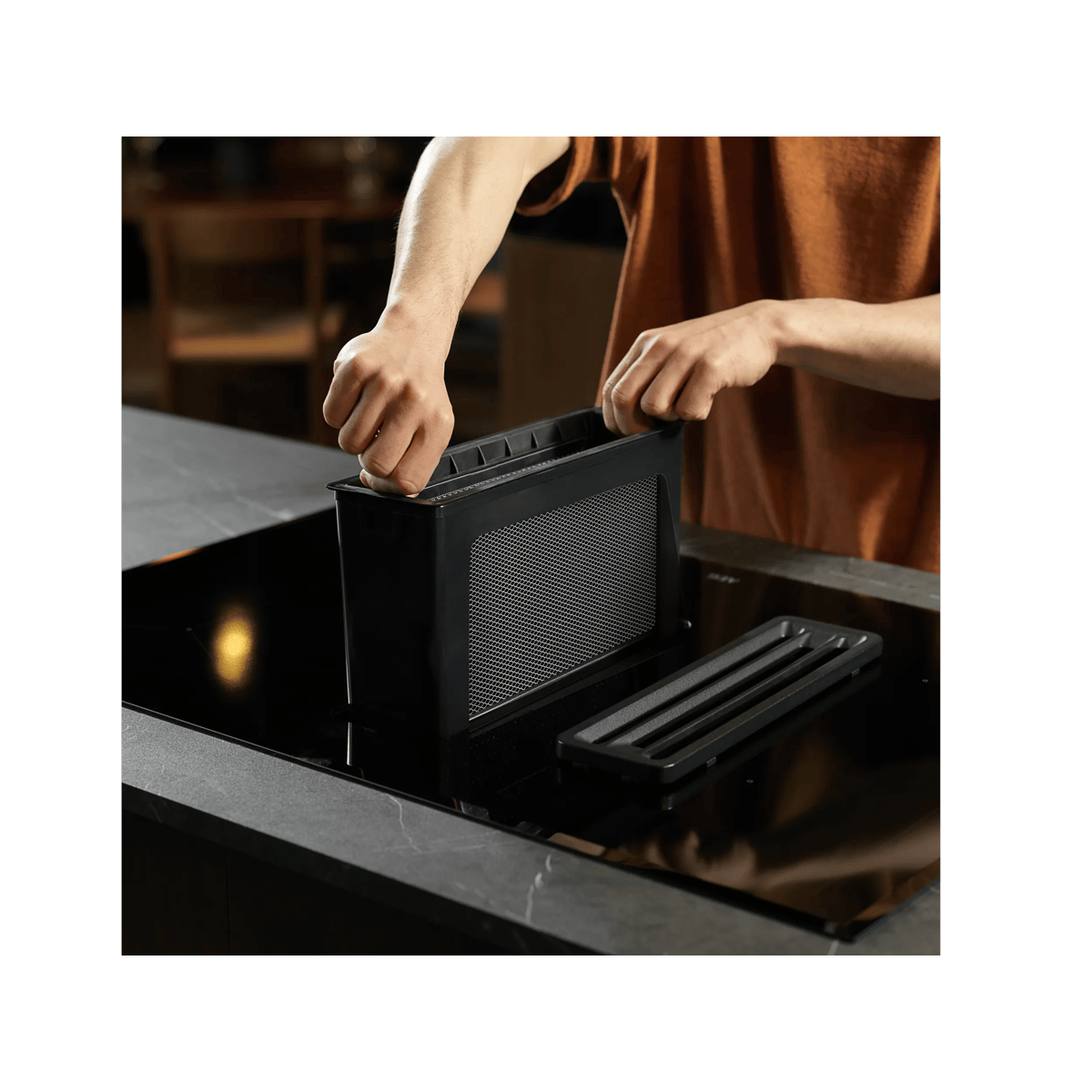

Easy to clean. Easy to remove. 2-in-1 Filter

The 2-in-1 Filter combines both a charcoal and grease filter that removes odours and grease. If the appliance is installed in recirculation mode, then a 2-in-1 filter is needed. The Filter is easy to remove and can be washed in the dishwasher.

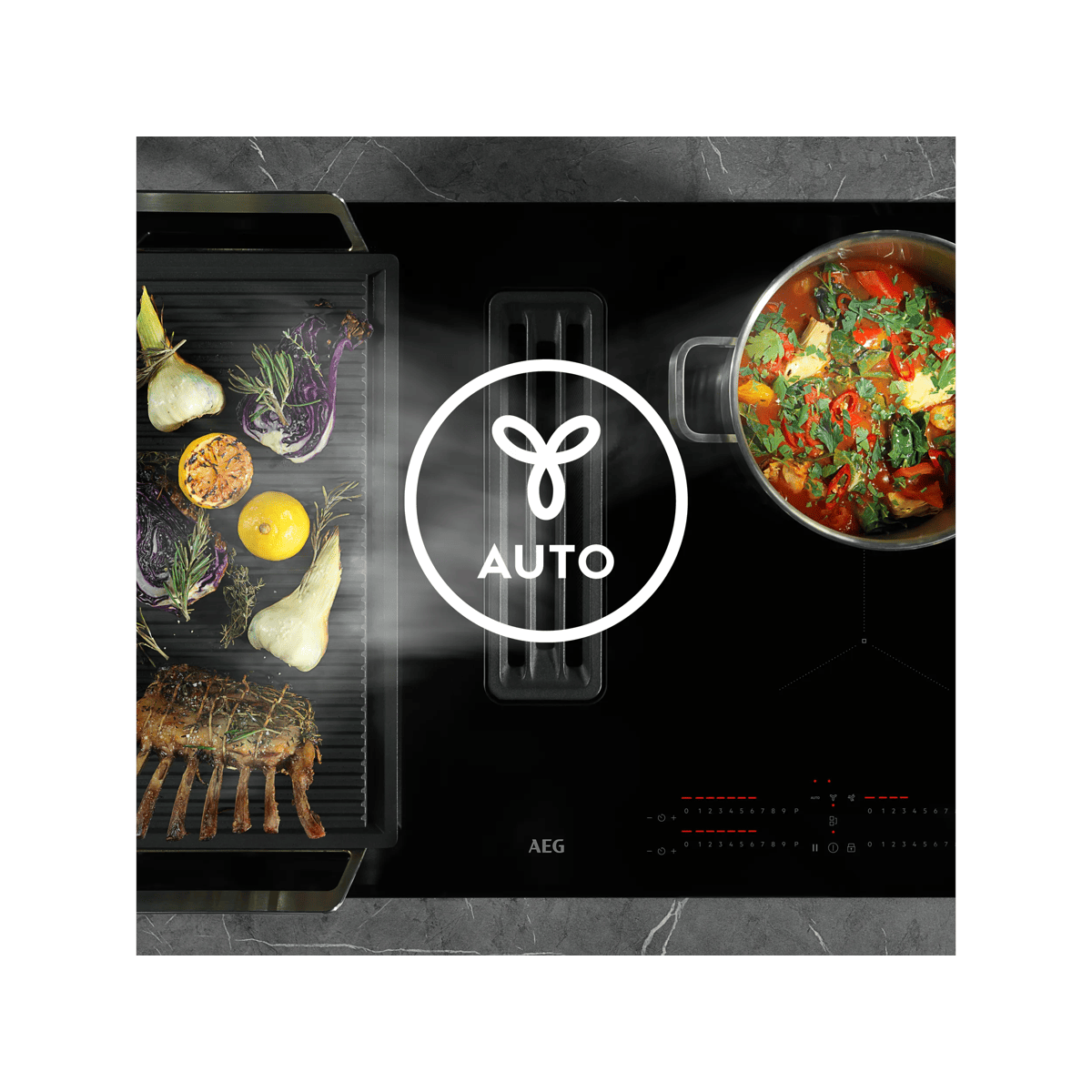

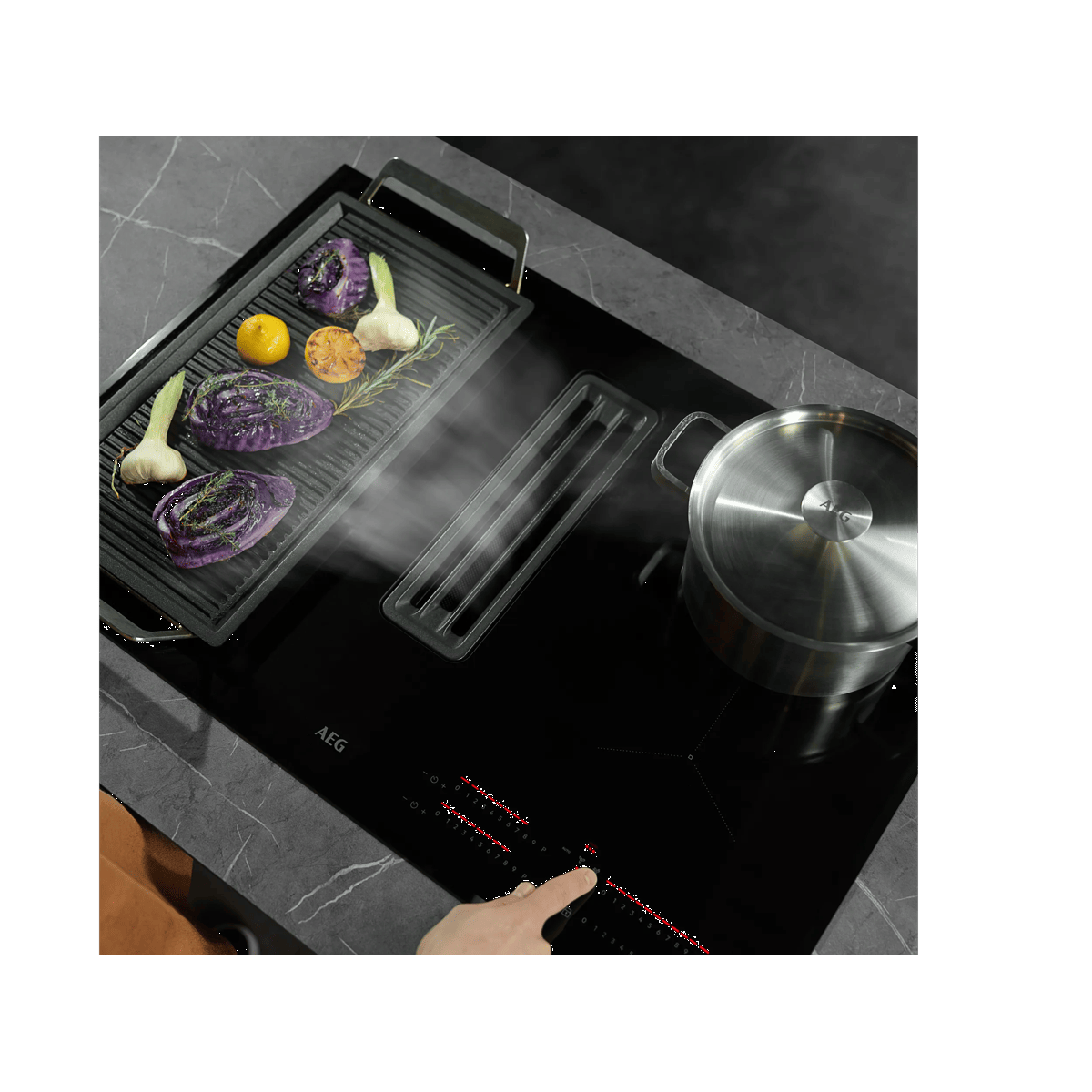

Automated extraction.

Auto mode extraction for during cooking. If you turn the temperature up or down on the hob, the extractor's fan will adjust itself accordingly. Meaning all your focus goes into your food.

Boost function. Cleans kitchen air quickly

When kitchen fumes or steam become too much, press the Boost function on the extractor for instant powerful extraction. Boost is activated for 10 min to efficiently clean the kitchen air.
