DGX3523S

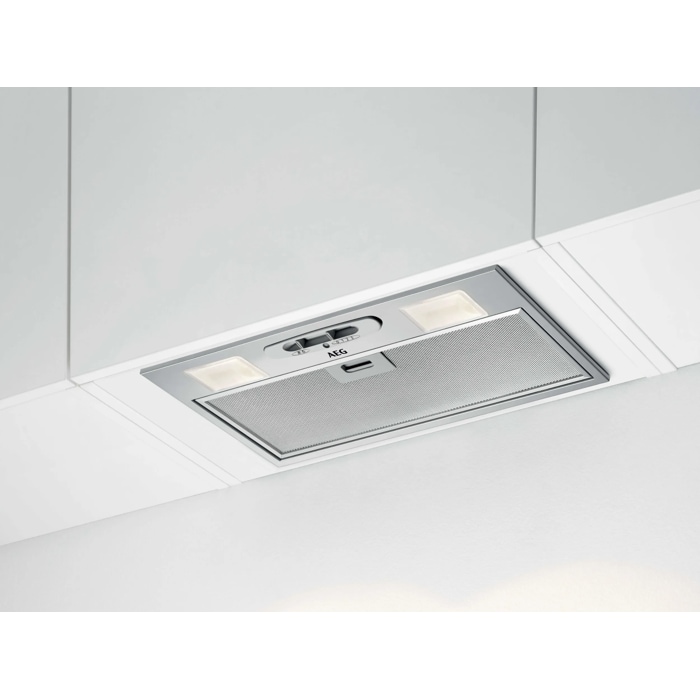

Integrated hood

Name: Integrated hood
Brand: AEG
SKU: DGX3523S

PDF Product Fiche

hidden

Incl. VAT

The 3000 ExtractionTech Standard hood features a reliable motor for effective odour extraction while preparing meals. Your kitchen air remains fresh and clean for a better cooking experience, everyday.

hidden

Monitor product

True

Lowest price last 30 days:

Number of Speed Settings3

Control TypeMechanical slider

Lamp TypeLED bulb

Energy RatingC

Ducted Extraction Rate - Min/Max/Intensive (m³/h)145/330/-

Ducted Noise Level - Min/Max/Intensive (dB)45/63/-

Grease Filter Efficiency RatingD

Minimum Distance from Electric Hob (cm)42

Safety Warnings

Essential precautions to ensure safe usage and installation.

Specification

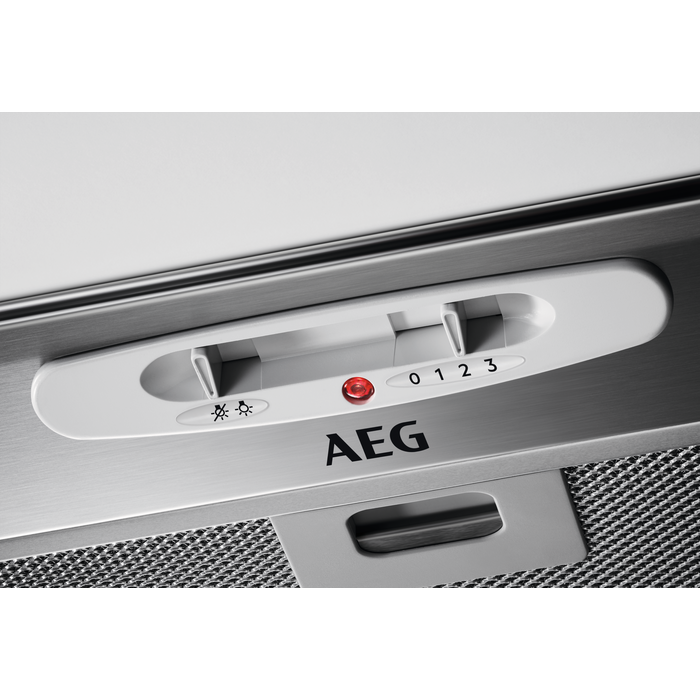

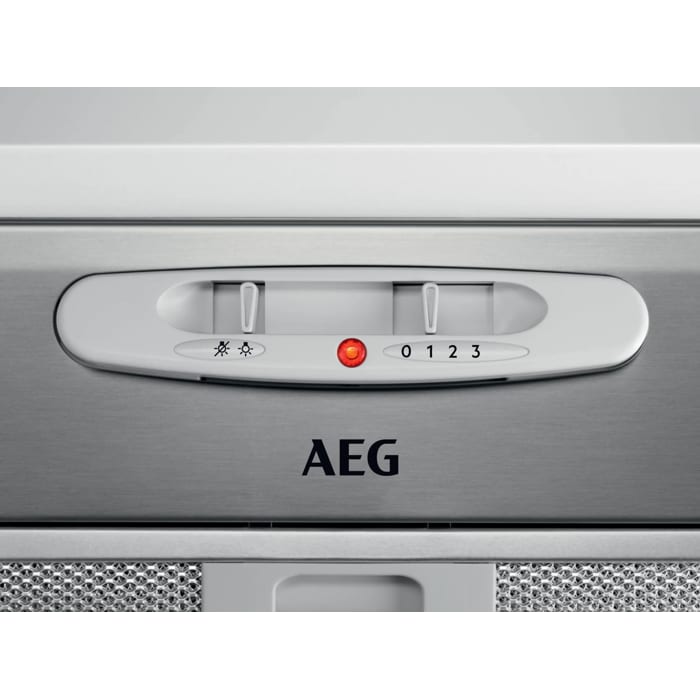

Control type: Slider with 3 speeds.

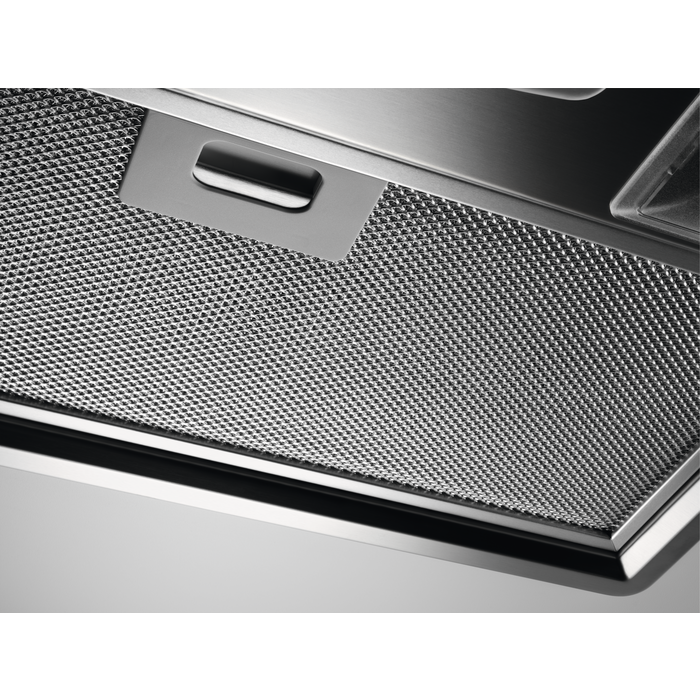

Aluminium grease filters: The metal filter captures grease, reducing odours, purifying the air, and enhancing performance. It's dishwasher-safe and never needs replacing.
Extraction mode: A ducting kit is attached to the hood to extract cooking vapours externally, keeping the kitchen free from odours.
Recirculation mode: The hood captures cooking vapours, filters the air through the charcoal filter, and recirculates clean air back into the kitchen, keeping it free from odors.
Grease filter type and number: Aluminium mesh, 1

Performance

Number of Speed Settings: 3
Ducted Extraction Rate - Min/Max/Intensive (m³/h): 145/330/-
Ducted Noise Level - Min/Max/Intensive (dB): 45/63/-
Light temperature, K: 3000
Number of Lights: 2
Hob2Hood Connection: No
Min Recirculated Extraction Rate (m³/h): 140
Max Recirculated Extraction Rate (m³/h): 220
Min Recirculated Noise Level (dB): 56
Max Recirculated Noise Level (dB): 70
Number of Grease Filters: 1
Grease Filter Type: Aluminium mesh

Installation

Minimum Distance from Electric Hob (cm): 42
Minimum Distance from Gas Hob (cm): 65
Size (cm): 52
Extraction Type - Recirculation: Yes
Extraction Type - Ducted (External): Yes
Net Weight: 4.3
Gross Weight (Kg): 5.1
Dimensions (mm) (HxWxD): 138x520x284
Installation Type: Group
Cord Length (m): 1.8
Air Outlet (mm): 150
Voltage (V): 220-240
Recommended fuse (A): N/A

Energy

Energy Rating: C
Grease Filter Efficiency Rating: D
Annual Energy Consumption (kWh): 51.9
Fluid Dynamic Efficiency Rating: D
Lighting Efficiency Rating: E

Other

Product number (PNC): 942 022 780

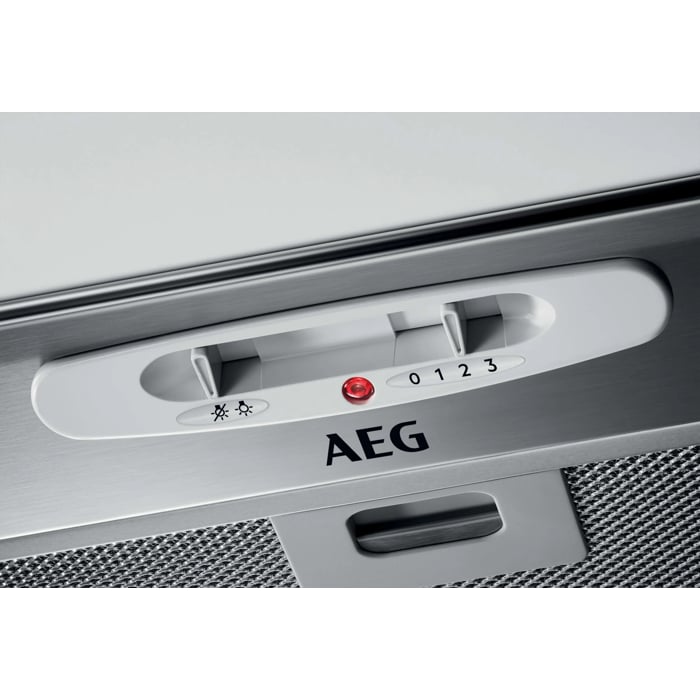

Control Type: Mechanical slider
Lamp Type: LED bulb
Bar Code: 7333394053097
Charcoal Filter: Accessory
Charcoal Filter Type: ECFB03ST
Long Life Filter Type: No
Super Performing Filter Type: NO
Information for professionals about non-destructive disassembly according to Regulation EU 66/2014

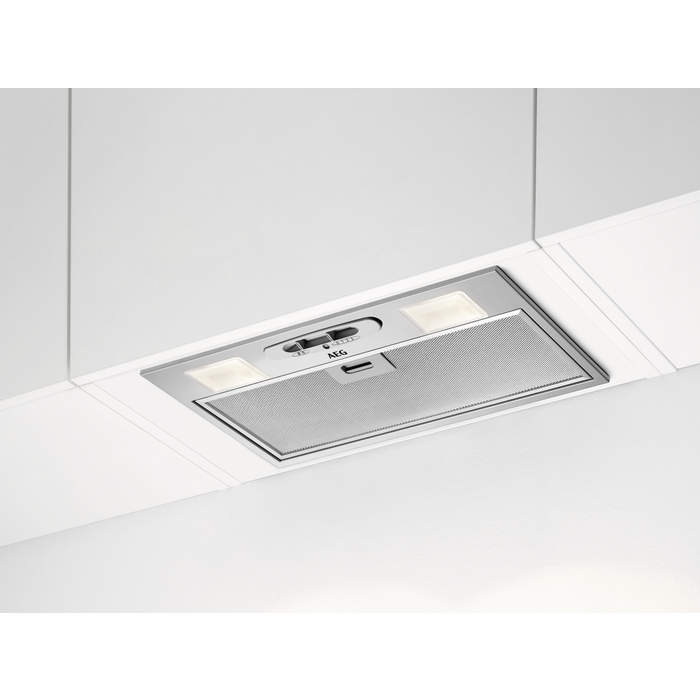

Keep the kitchen fresh with the ExtractionTech Standard hood.

The ExtractionTech Standard hood features a reliable motor for effective odour extraction while preparing meals. Your kitchen environment remains fresh and clean for a better cooking experience, everyday.

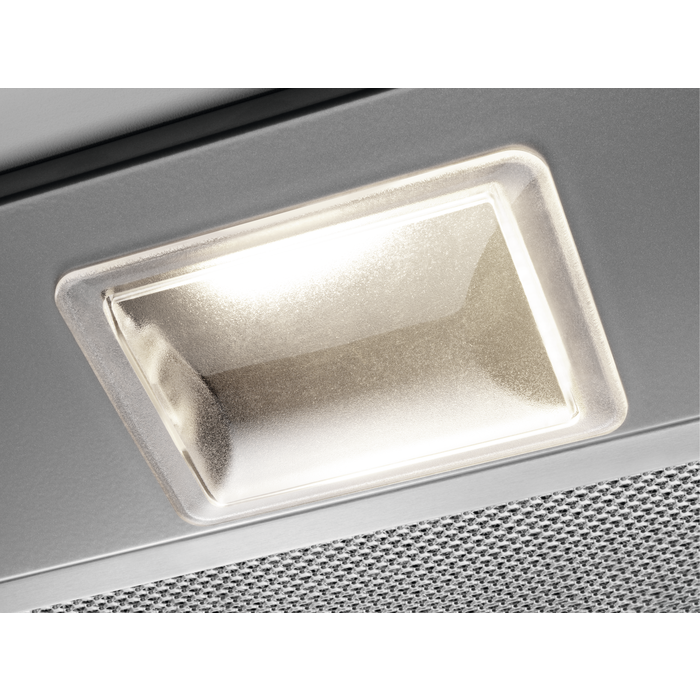

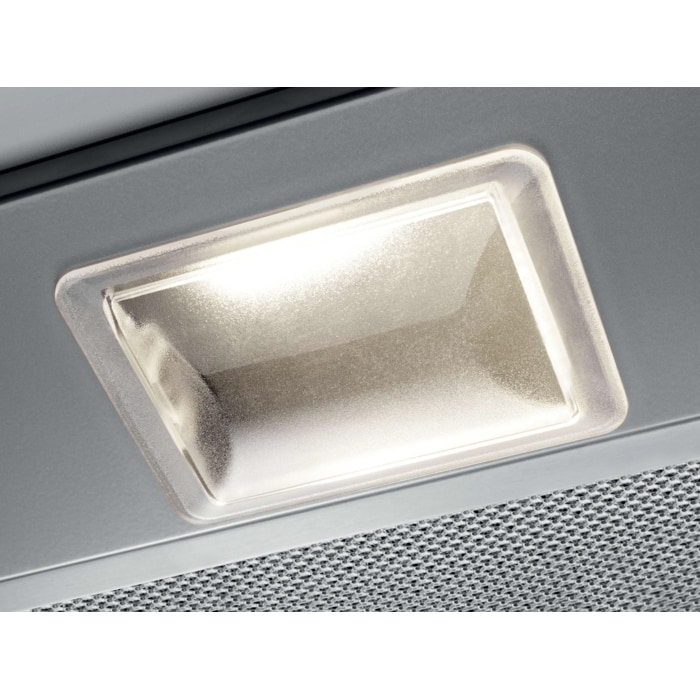

Spotlight the details with the Pure Illumination

Energy-efficient Pure Illumination provides full visibility while cooking. The LED lights illuminate the entire cooking surface, making it easy to see every detail of your meal preparation.

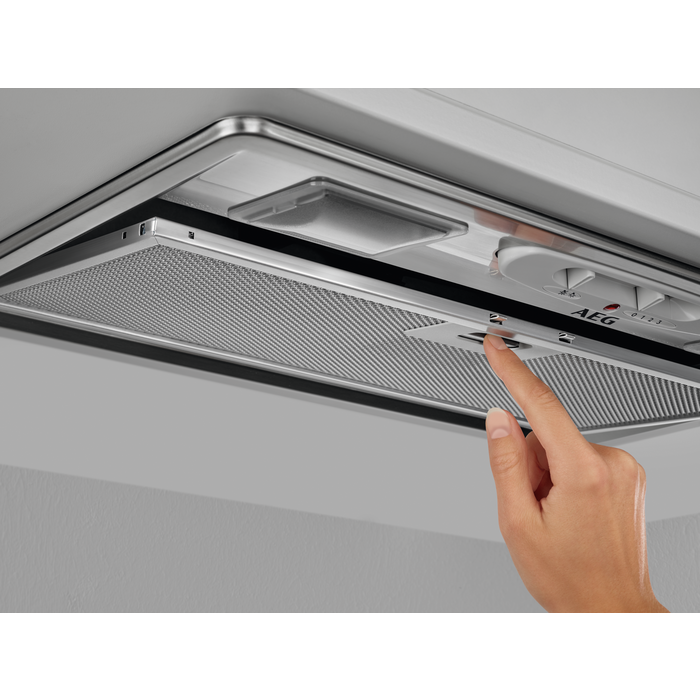

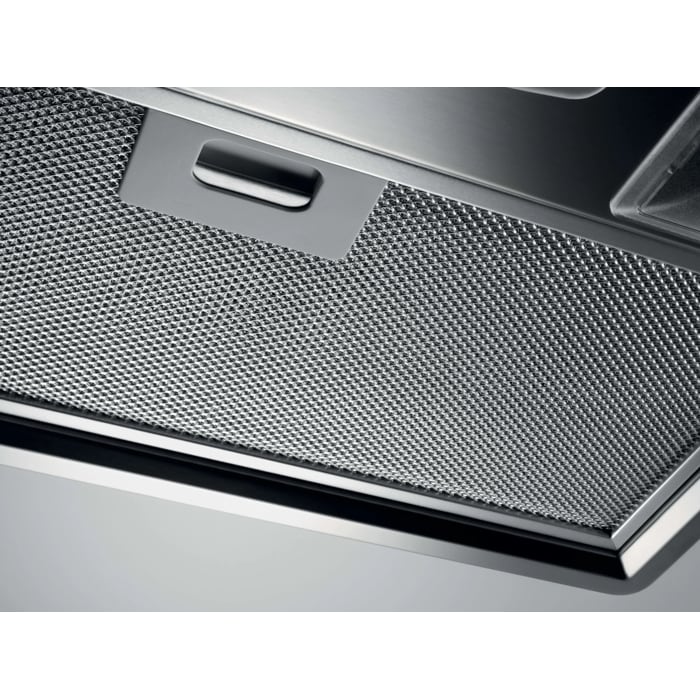

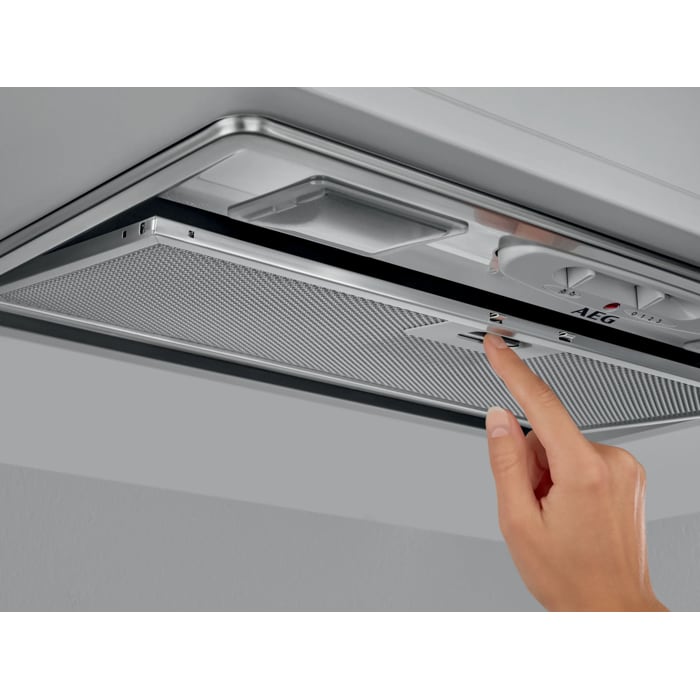

Reliable, easy-to-clean grease filter keeps kitchen fresh

Convenient, reliable grease filter ensures your kitchen stays fresh and hood performs at its best. Wash by hand or in dishwasher.
