TCH74B01CB

ComboHob

Name: TCH74B01CB
Brand: AEG
SKU: TCH74B01CB

Product details

PDF Product Fiche

hidden

Incl. VAT

hidden

Monitor product

True

Lowest price last 30 days:

Frame TypeFrameless Square

Dimensions (mm) (WxD)700x510

Built-in Dimensions (mm) (HxWxD)225x680x490

Air Outlet (mm)220

Grease Filter TypeAluminium mesh

Number of Grease Filters2

Aperture Cut Out (mm)5/10 integrated

Energy RatingA+

Specification

ComboHob: 2-in-1 combination of hob and extractor fan.
PowerBoost: Gives an instant increase in temperature allowing water to boil in less than 90 seconds.
Child lock safety function.
Auto safety switch off: The power automatically turns off if a cooking zone is left on for too long.
The bridging function: Combines 2 cooking zones allowing flexibility for any size pan.
Inverter motor
Grease filter indicator.
Charcoal filter indicator.
Grease filter type and number: Aluminium mesh, 2
Minute minder: Set the minute minder to remind you which dishes have finished cooking.
EcoTimer™: Saves energy by using the residual heat from the hob, turning off the cooking zone before the end of your timer to boost efficiency.
Automated extraction: Auto mode adjusts the extractor fan based on hob temperature changes, so you can focus entirely on cooking.
Pause functionality allows you to take short breaks without losing your cooking settings.
Recirculation mode: The hood captures cooking vapours, filters the air through the charcoal filter, and recirculates clean air back into the kitchen, keeping it free from odors.

Performance

Grease Filter Type: Aluminium mesh
Number of Grease Filters: 2
Left Front - Power/Diameter: 2300/3200W/210mm
Left Rear - Power/Diameter: 2300/3200W/210mm
Right Front - Power/Diameter: 1400/2500W/145mm
Right Rear - Power/Diameter: 1800/2800W/180mm
Number of cooking zones: 4
Hob Type: Induction ExtractorHob
Ducted Extraction Rate - Min/Max/Intensive (m³/h): 650/550/270
Hob2Hood Connection: Yes

Installation

Dimensions (mm) (WxD): 700x510
Built-in Dimensions (mm) (HxWxD): 225x680x490
Air Outlet (mm): 220
Aperture Cut Out (mm): 5/10 integrated
Cord Length (m): 1.5
Plug or Hardwired: Hardwired connection only
Extraction Type - Recirculation: Yes
Extraction Type - Ducted (External): No

Energy

Energy Rating: A+
Fluid Dynamic Efficiency Rating: A
Grease Filter Efficiency Rating: B

Other

Product number (PNC): 949 598 097

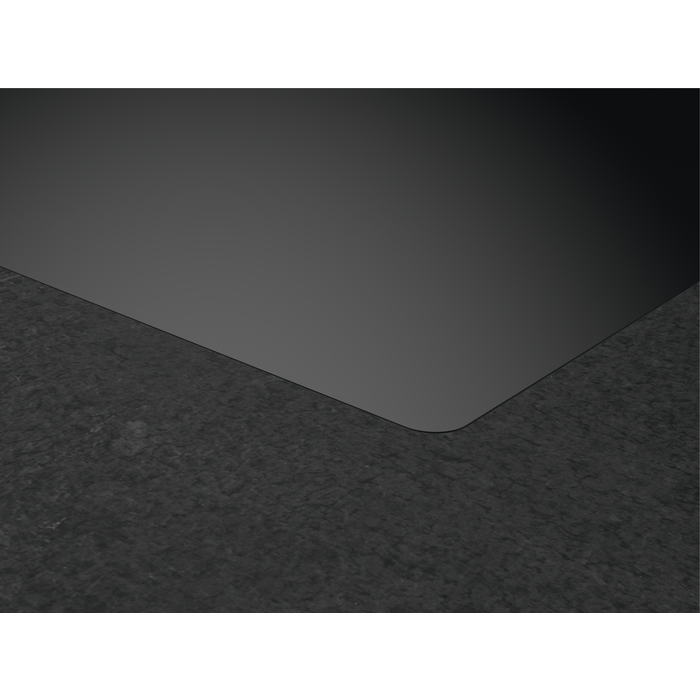

Frame Type: Frameless Square
Motor Type: Brushless
Bar Code: 7333394017907
Series: 6000
Recirculated Extraction Rate - Min/Max/Intensive (m³/h): 250/480/585
Ducted Noise Level - Min/Max/Intensive (dB): 50/66/69
Information for professionals about non-destructive disassembly according to Regulation EU 66/2014

Product details

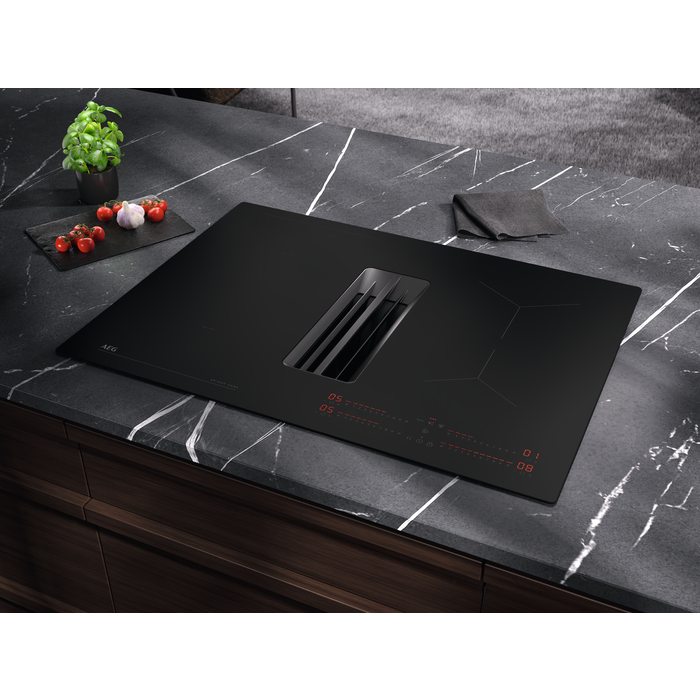

The 6000 Bridge Extractor Hob combines an induction hob to fit a 60cm cabinet, with a powerful built-in extractor for optimal air flow. It also has a Bridge function, allowing you to combine two cooking zones into one for larger cookware.

The Bridge Extractor Hob. For greater kitchen freedom

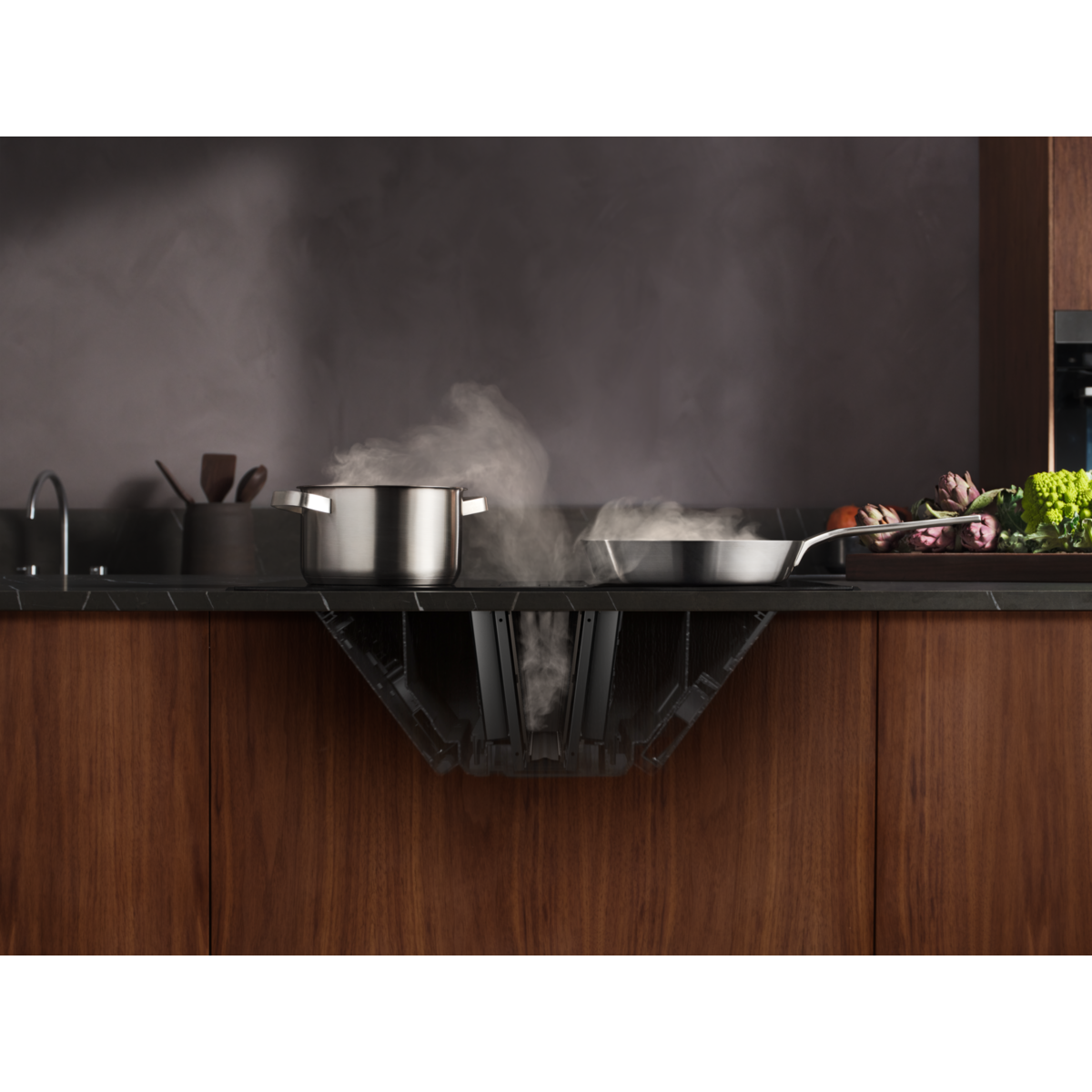

The Bridge Extractor Hob combines an induction hob to fit a 60cm cabinet with a powerful built-in extractor for optimal airflow. The hob's Bridge function also allows you to combine two cooking zones into one for larger cookware.

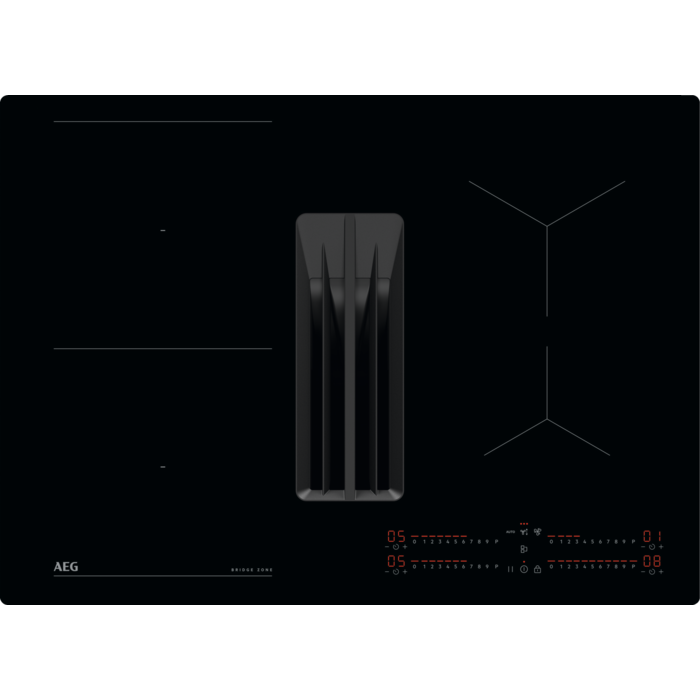

The Bridge feature – cooking versatility with two zones

The convenient Bridge feature links two zones to create a larger cooking area. Both zones are automatically power aligned for seamless cooking performance.

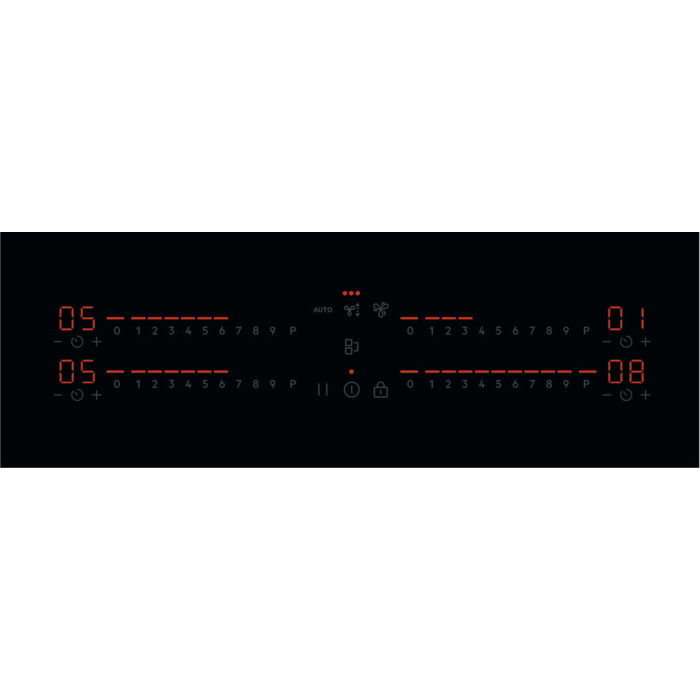

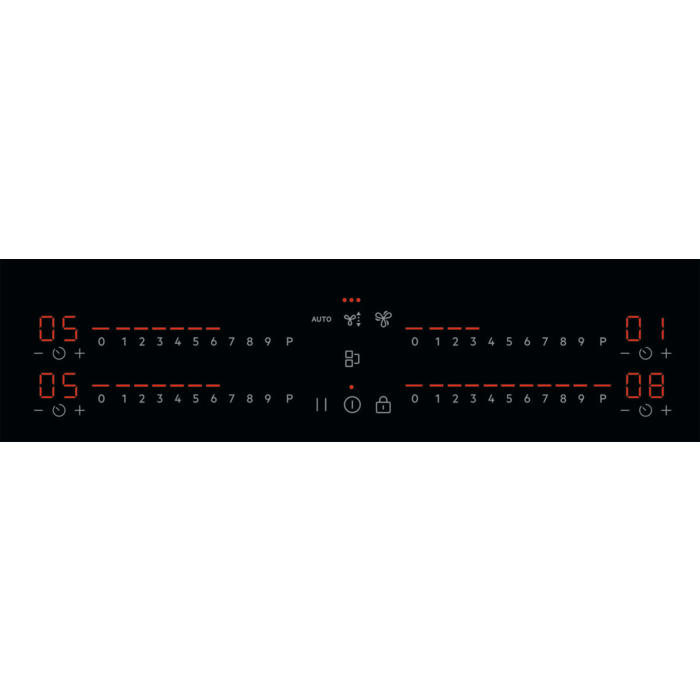

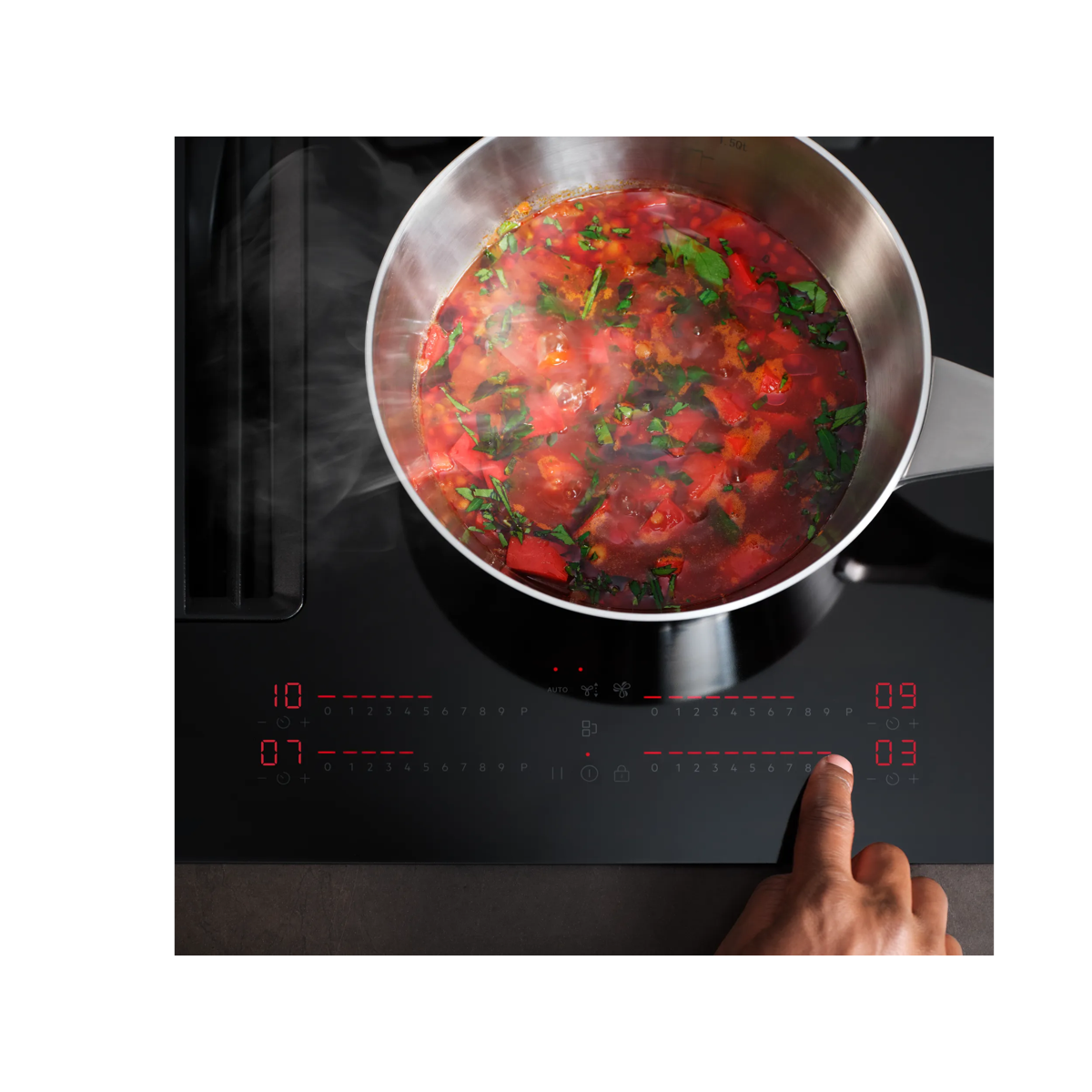

4 Individual Zone Controls. Unlimited cooking options

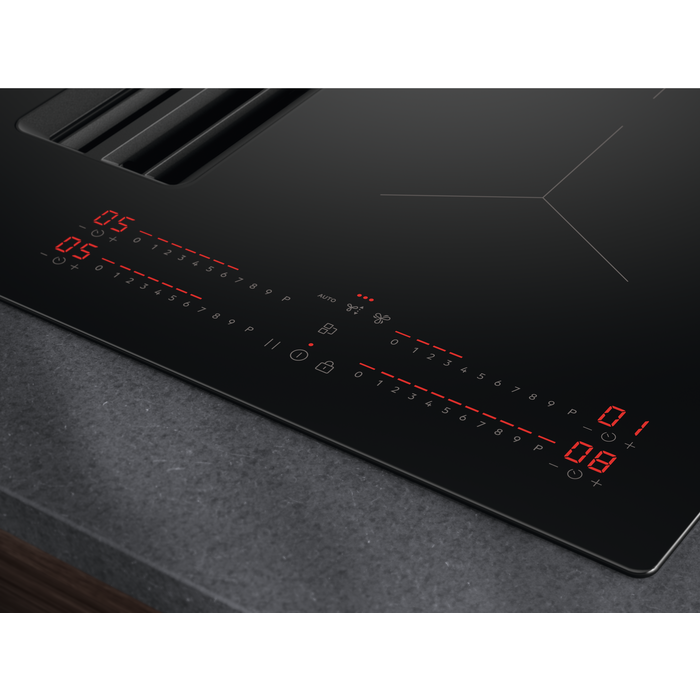

4 Individual Zone Controls, with 9 power levels, allow you to Individually control 4 different cooking areas and set separate timers for each. Other functions include power boost, active touch, child lock and automatic extractor control.

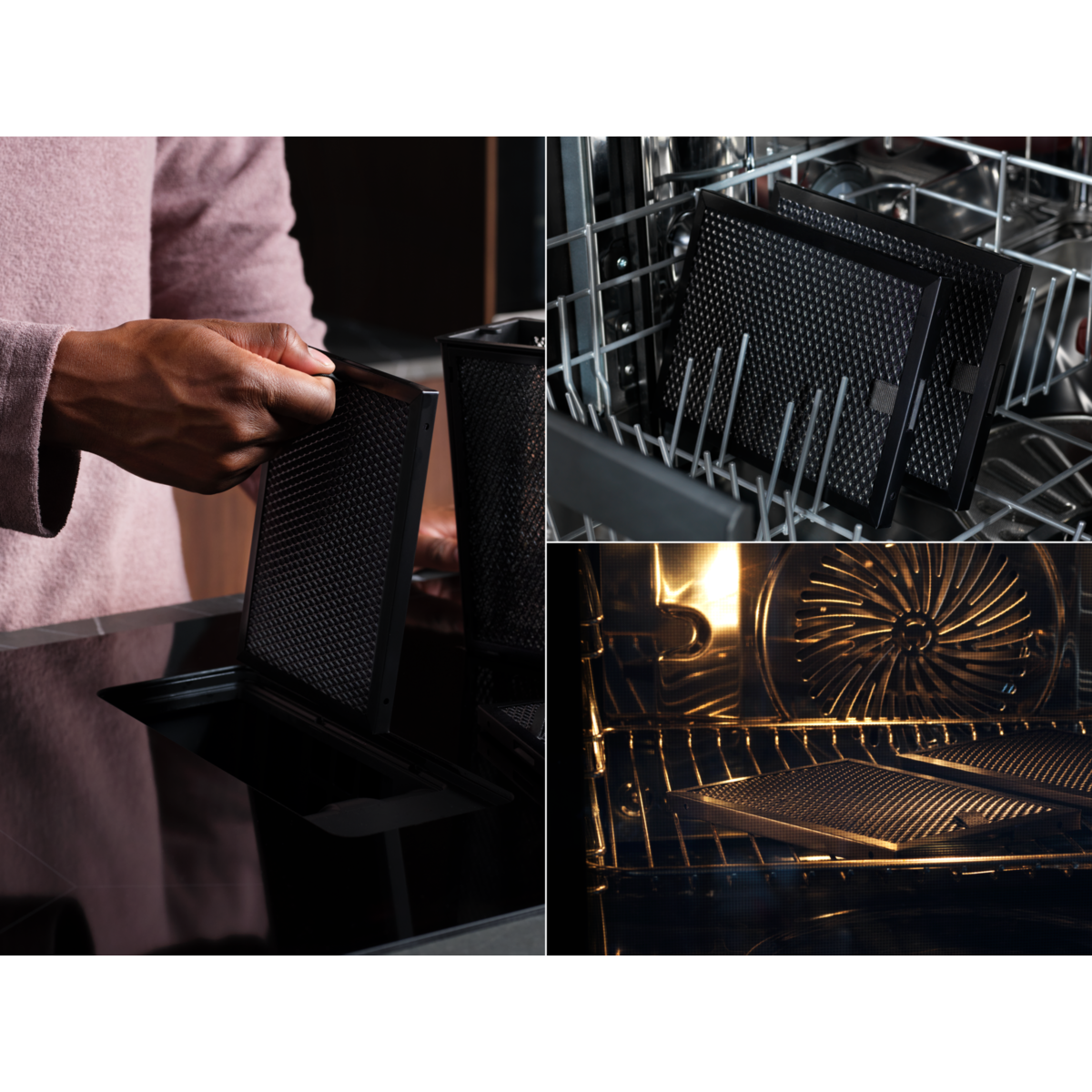

Long-Life Carbon Filter. Clean and re-use multiple times

The Long-Life Carbon Filter is easy to clean, so your kitchen air stays fresh, and your fan runs at its best for longer. Filters can be loaded in the dishwasher for cleaning, easily refitted and regenerated up to 8 times for extended life.

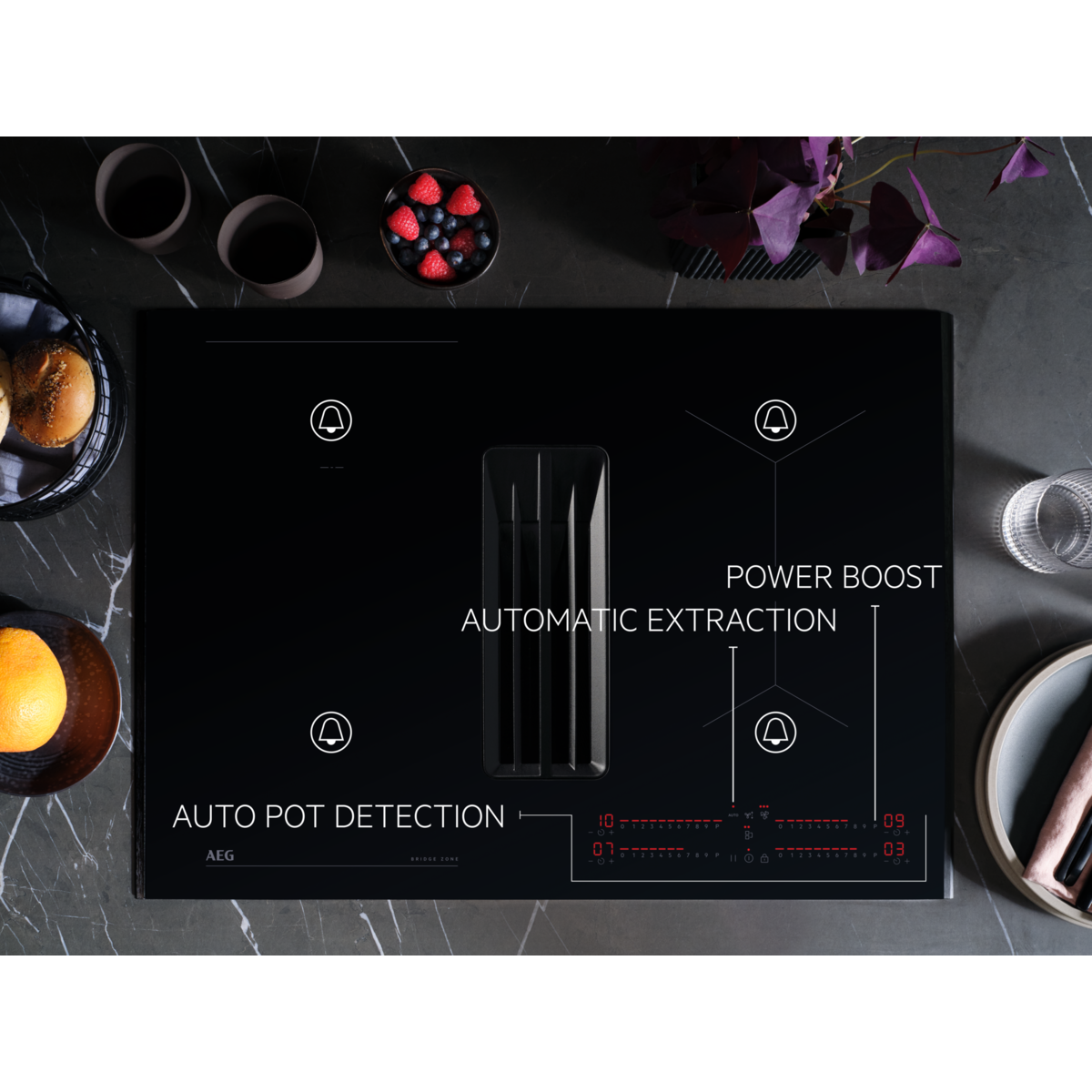

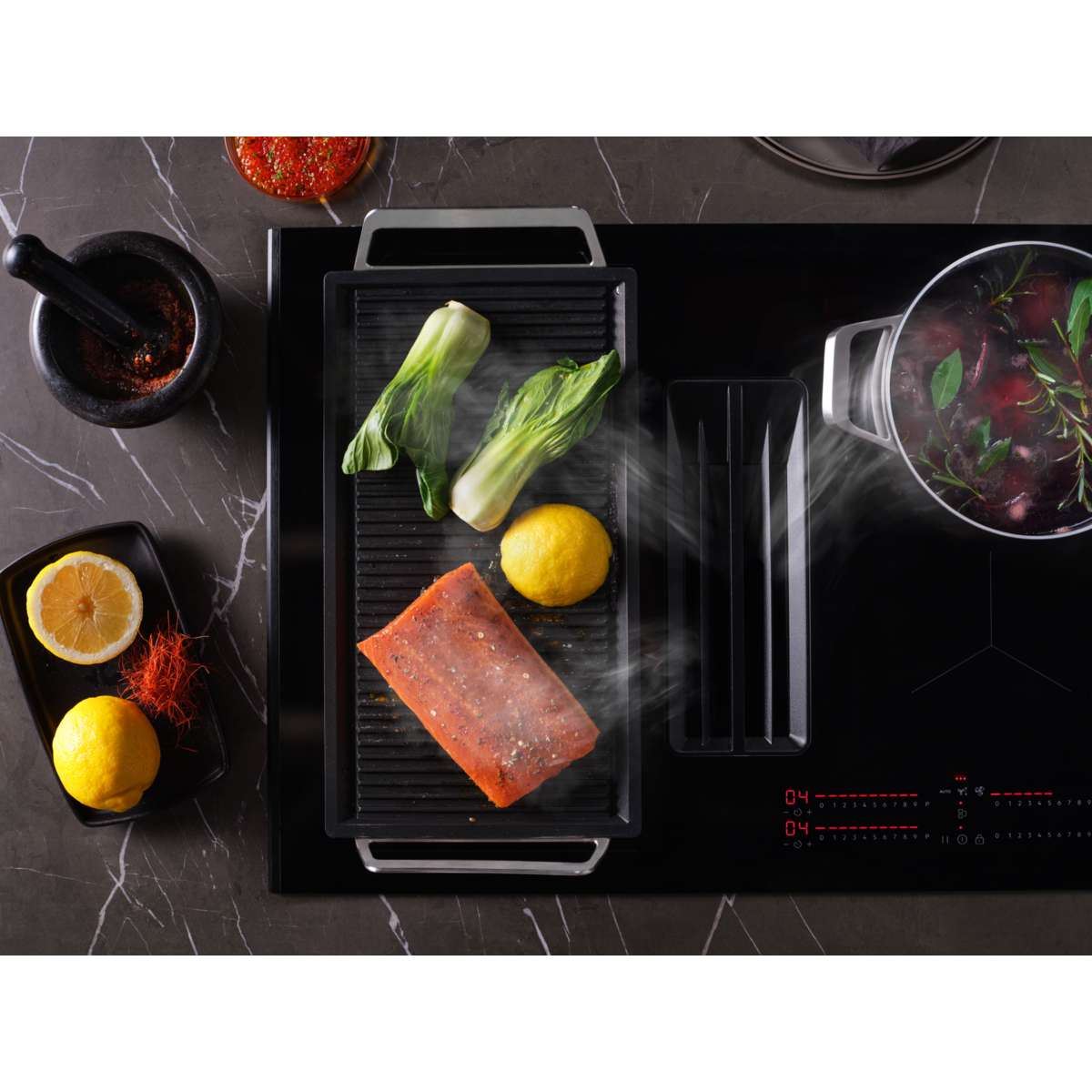

Automatic Extractor Control. Adjusts as you cook

Automatic Extractor Control allows you to focus on what matters – cooking. The hob will automatically switch on and adjust the extraction level according to your cooking activities, keeping your kitchen fresh and hands free.
