NAB7N181EC

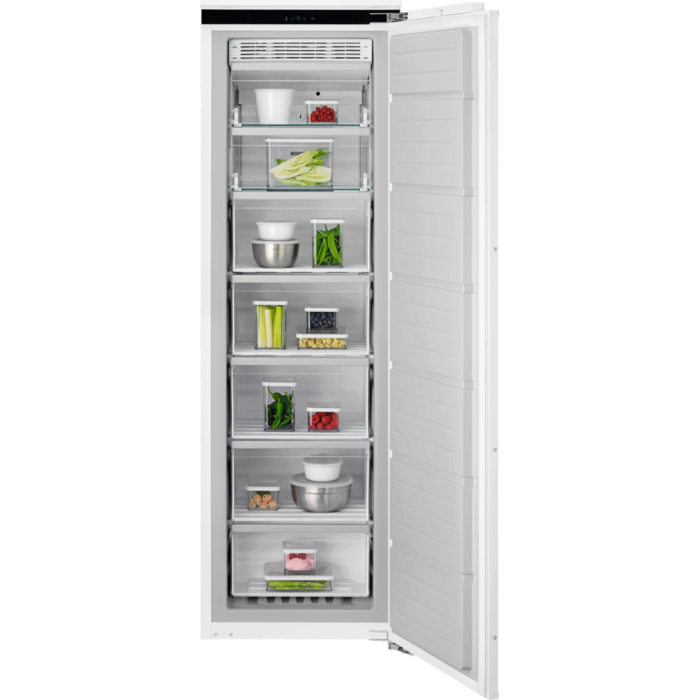

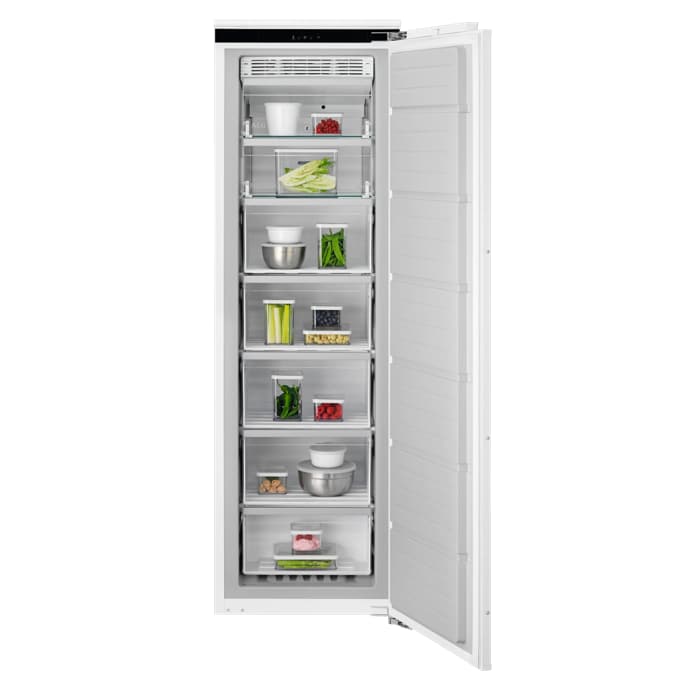

Integrated freezer

Name: Integrated freezer
Brand: AEG
SKU: NAB7N181EC

PDF Product Fiche

Series7000

Energy RatingE

Freezer Capacity (L)212

Freezer Defrost TypeNo Frost

Fast Freeze FunctionTouch Button Auto Return

Freezer - Number Of Drawers5 Full Width

Hatch Doors2, Transparent Plastic

Dimensions (mm) (HxWxD)1769x557x549

Safety Warnings

Essential precautions to ensure safe usage and installation.

Product documents

spec sheetDownload PDF

product user manualDownload PDF

pdf Product FicheDownload PDF

pdf Energy labelDownload PDF

Installation specifications

Installation chartOpen image

Connected Product

Product Data InformationOpen page

Specification

Precision Freezing System: The precision freezing system distributes air throughout the freezer ensuring an even temperature is maintained for a perfect freezing result in every drawer.
High temperature alert: Audible.
Open door alert: Audible & visual.
216 litres gross capacity
204 litres net capacity

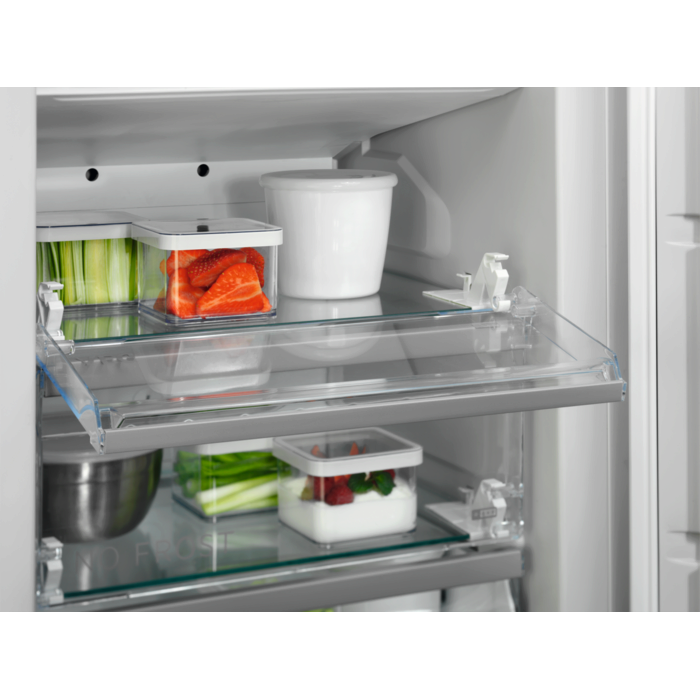

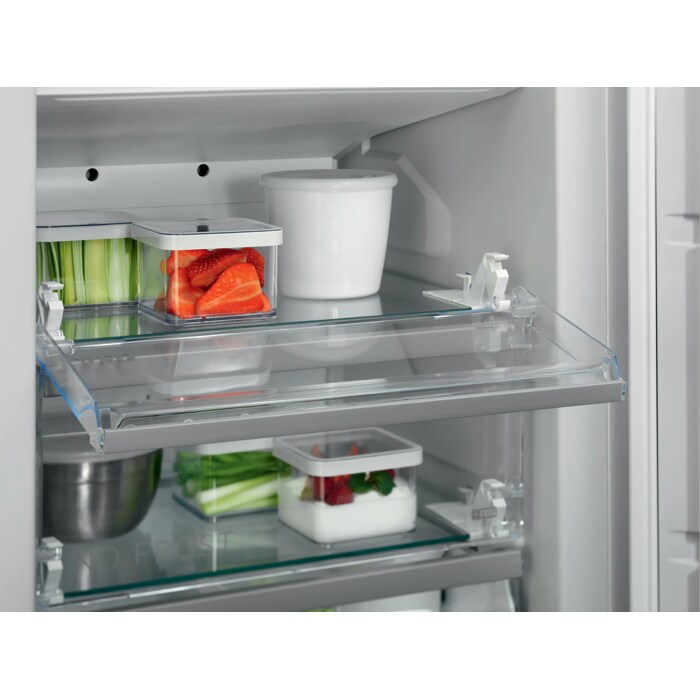

2 fold-down freezer compartments

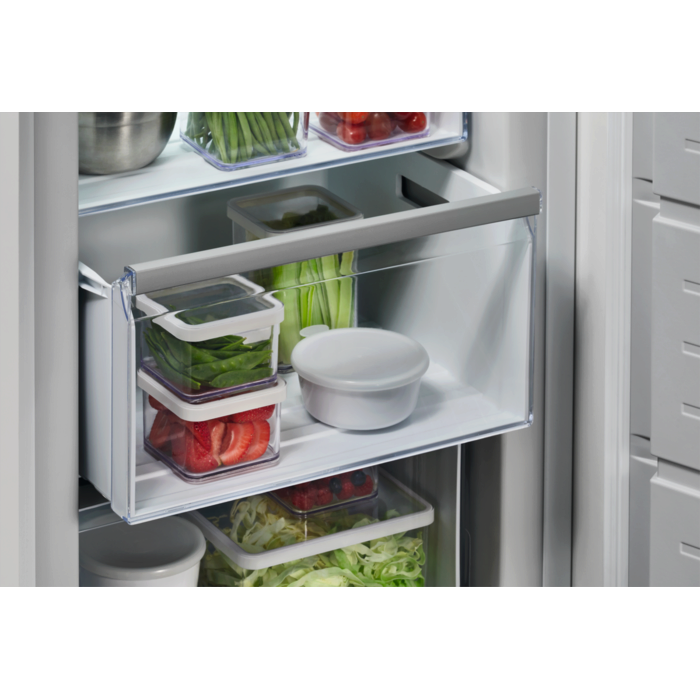

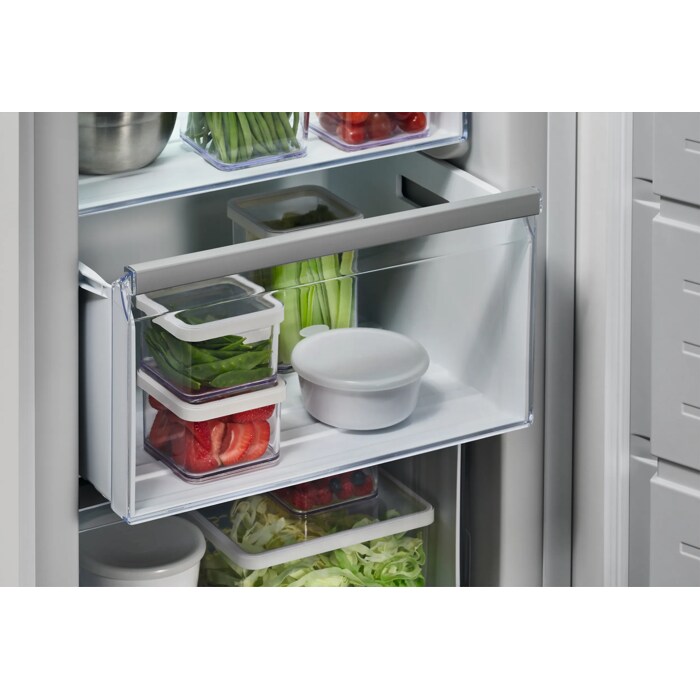

5 Full Width transparent freezer drawers
None energy rating
Reversible Doors: Reversible door hinge gives flexibility to have a left or right side opening door.
Fixed door on door fittings: A cupboard door, matching your kitchen units, can be mounted directly onto the appliance door.

Performance

Freezer Capacity (L): 212
Freezer Defrost Type: No Frost
Fast Freeze Function: Touch Button Auto Return
Noise (dB): 35
High-Temp Indicator Type: Display;Sound With Switch Off Function

Installation

Dimensions (mm) (HxWxD): 1769x557x549
Door Hinge Position: Right & Reversible
Built-in Dimensions (mm) (HxWxD): 1780x560x550
Installation: BI DoD
Cord Length (m): 2.4
Voltage (V): 220-240
Plug or Hardwired: Uk Moulded Plug
Net weight (kg): 68.4
Gross weight (kg): 70

Energy

Energy Rating: E
Noise Rating: B
Annual Energy Consumption (kWh): 236
Frequency (Hz): 50
Minimum Ambient Temperature (°C): 10
Climate Class: SN-N-ST
Freezer - Recommended Temp (°C): -18

Other

Product number (PNC): 922 784 314
Series: 7000
Freezer - Number Of Drawers: 5 Full Width
Hatch Doors: 2, Transparent Plastic
Freezer Light Type: None
Control Position: Top

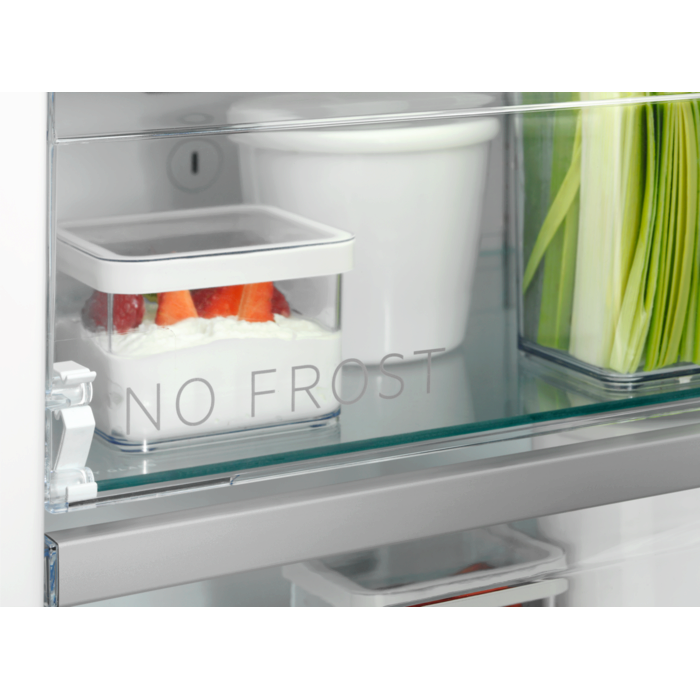

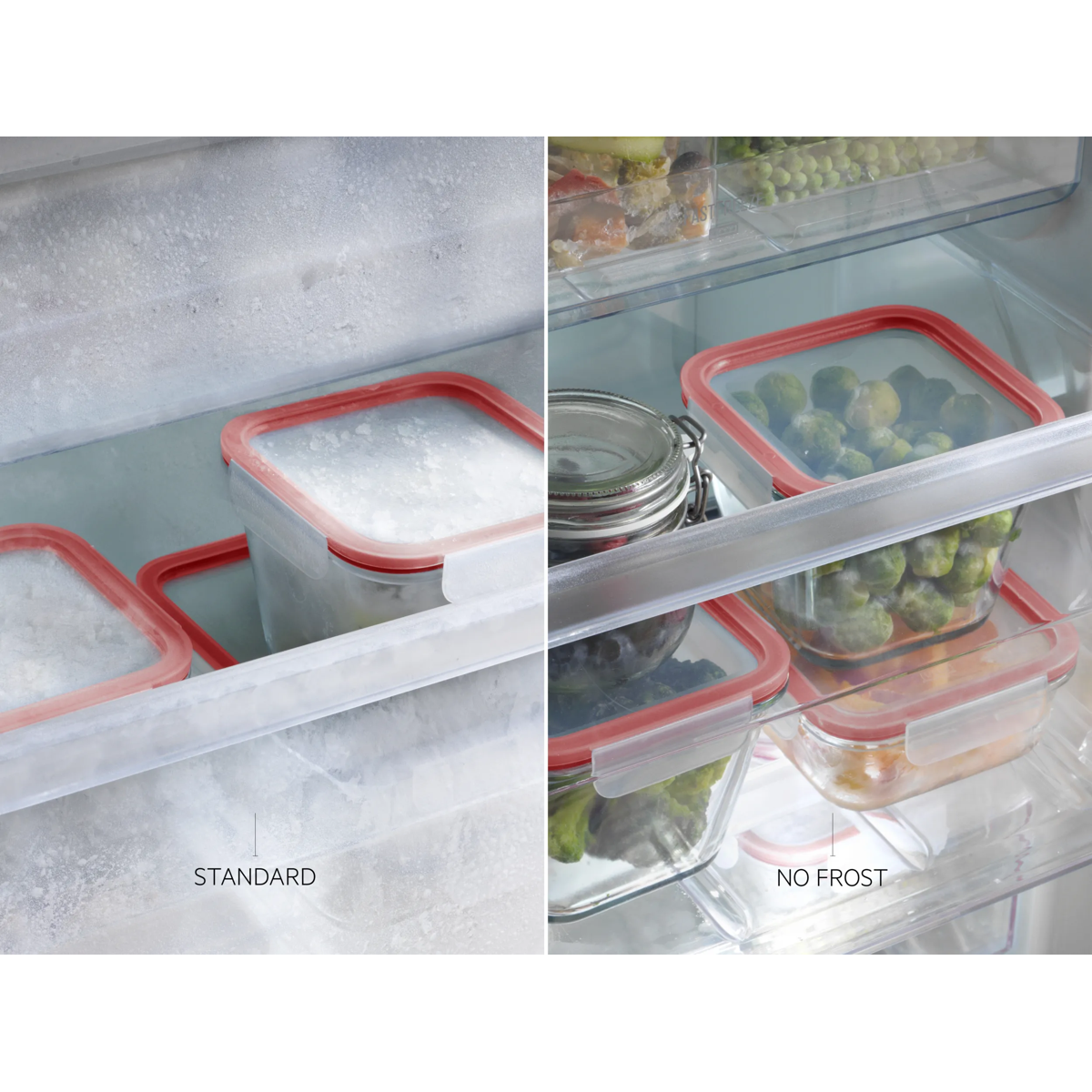

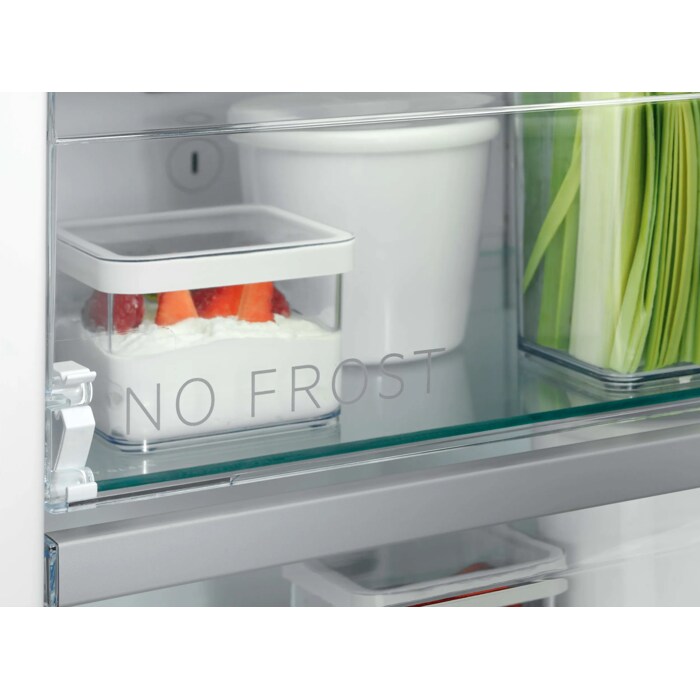

Keep your freezer ice free, with No Frost

No Frost means there's no defrosting. It keeps the freezer ice-free, so you can always be sure of maximum performance.

New-era innovation. Unique freezer with recycled plastic

A new era of cooling is here. Introducing our freezer with an inner lining made of 70% recycled plastic. Plastic from discarded cold appliances is used to make new refrigerators, helping reduce waste thorugh circularity.

*Inner liner rHIPS made with up to 70% recycled plastic representing 13% of total fridge plastic”

Audible Door Alarm

The Door Alarm alerts you if your appliance door is left open for certain amount of time, so you can close it promptly.

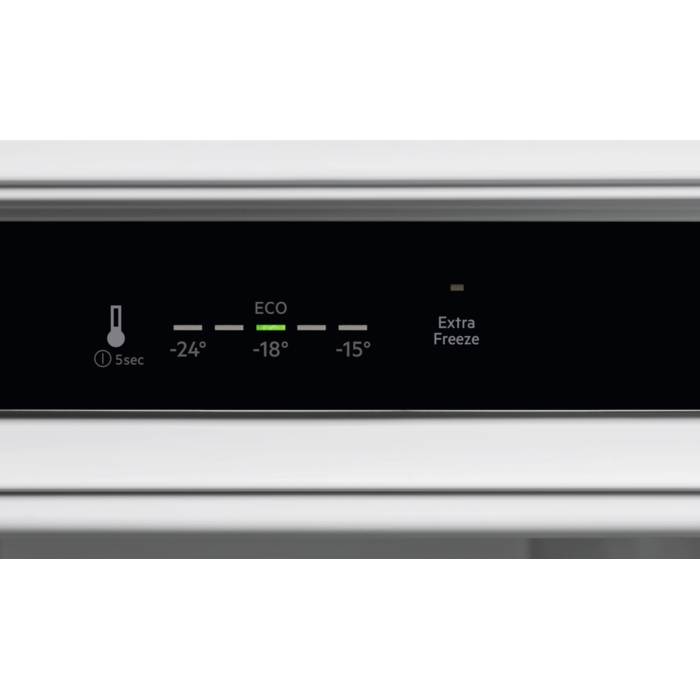

Maintain perfect texture with Extra Freeze.

The Extra Freeze system freezes fresh foods quickly so that vitamins, textures, flavours, and all healthy qualities are better preserved.

Soft-closing door for smooth and quiet closing every time

Accurately crafted soft-closing door hinges help to prevent accidently open freezer doors that can lead to wasted energy and spoiled food by ensuring a snug, secure and quiet experience when closing the door.
