Safety instructions and safety warnings according to EU regulation 2023/988 are listed in chapter 1 and 2 of the user manual. For safe use of the product read the full user manual.

OAB7N82EF

Integrated freezer

Name: Integrated freezer
Brand: AEG
SKU: OAB7N82EF

PDF Product Fiche

Series7000

Energy RatingE

Freezer Capacity (L)85

Freezer Defrost TypeNo Frost

Fast Freeze FunctionPush Button Auto Return By Time

Freezer - Number Of Drawers3 Full Width

Hatch DoorsNo

Dimensions (mm) (HxWxD)819x596x547

Safety Warnings

Essential precautions to ensure safe usage and installation.

Product documents

spec sheetDownload PDF

product user manualDownload PDF

pdf Product FicheDownload PDF

pdf Energy labelDownload PDF

Installation specifications

Installation chartOpen image

Connected Product

Product Data InformationOpen page

Specification

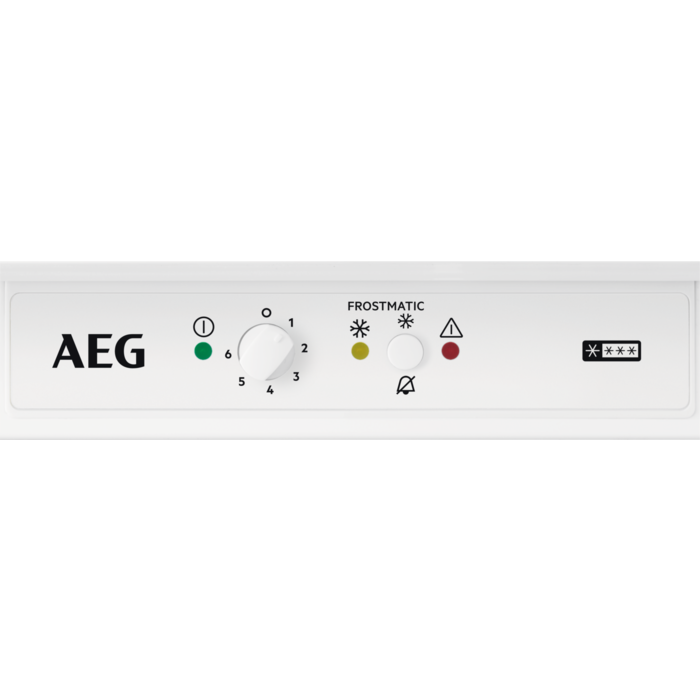

Thermostat control knob
Fast freeze: When putting fresh food in the freezer, this function rapidly freezes items to help preserve their flavour, nutritional value, and colour.
Precision Freezing System: The precision freezing system distributes air throughout the freezer ensuring an even temperature is maintained for a perfect freezing result in every drawer.
High temperature alert: Audible.
Open door alert: Audible & visual.
86 litres gross capacity
85 litres net capacity

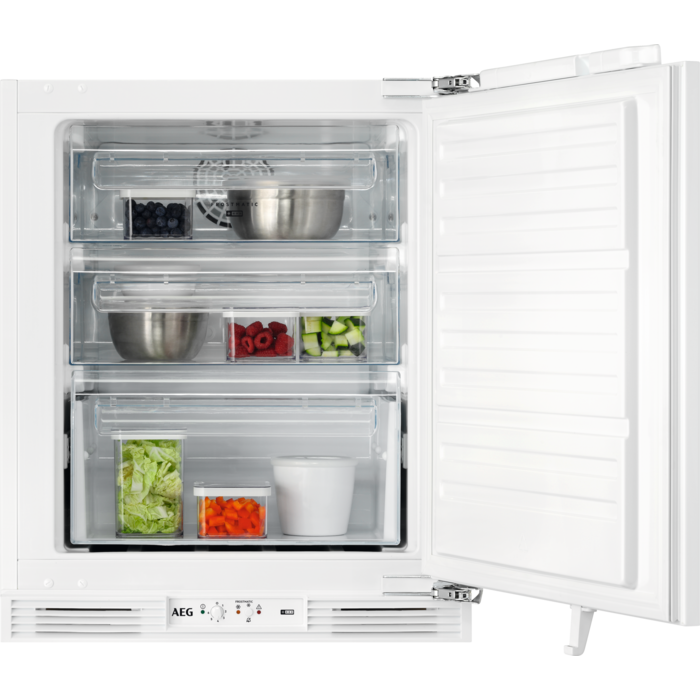

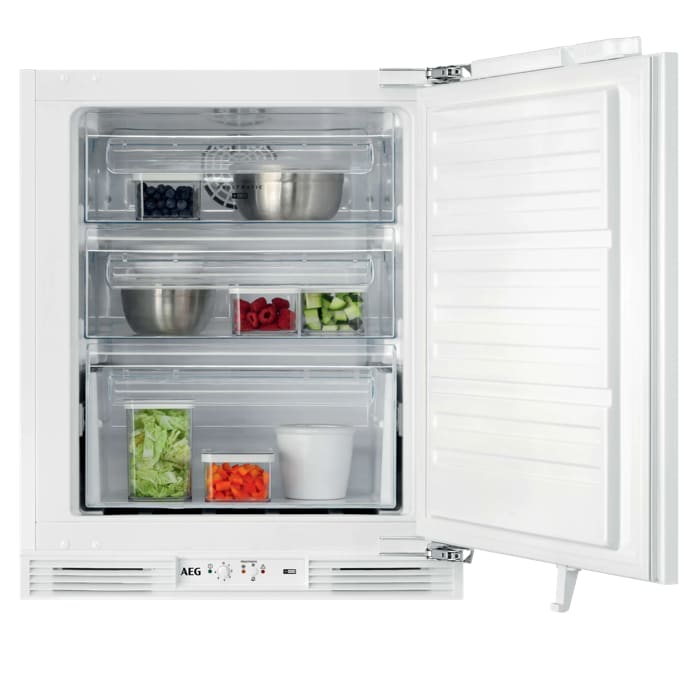

3 Full Width transparent freezer drawers
A+ energy rating
Reversible Doors: Reversible door hinge gives flexibility to have a left or right side opening door.
Fixed door on door fittings: A cupboard door, matching your kitchen units, can be mounted directly onto the appliance door.

Performance

Freezer Capacity (L): 85
Freezer Defrost Type: No Frost
Fast Freeze Function: Push Button Auto Return By Time
Noise (dB): 43
High-Temp Indicator Type: Light;Sound With Switch Off Function

Installation

Dimensions (mm) (HxWxD): 819x596x547
Door Hinge Position: Right & Reversible
Built-in Dimensions (mm) (HxWxD): 820x600x550
Recommended fuse (A): 10
Installation: BI UC DoD
Cord Length (m): 2.4
Voltage (V): 230-240
Wheels/Feet: Front adjustable rollers
Plug or Hardwired: Uk Moulded Plug
Net weight (kg): 35

Energy

Energy Rating: E
Freezing Capacity (kg): 7
Noise Rating: D
Annual Energy Consumption (kWh): 190
Frequency (Hz): 50
Minimum Ambient Temperature (°C): 10
Climate Class: SN-N-ST-T
Freezer - Recommended Temp (°C): -18

Other

Product number (PNC): 933 026 031
Series: 7000
Freezer - Number Of Drawers: 3 Full Width
Hatch Doors: No
Freezer Light Type: None
Control Position: Bottom

Keep your freezer ice free, with No Frost

No Frost means there's no defrosting. It keeps the freezer ice-free, so you can always be sure of maximum performance.

Store plenty at once. With OptiSpace

This innovative Freezer with OptiSpace offers lots of storage options, and abundant room between shelves. The freezer boxes can all be easily detached and reattached, for effortless and convenient storage.

Manage functions and temperature with Electronic Control

Electronic control gives you the ability to make precise modifications of the temperature and other storage functions. This efficient Upright Freezer also gives you instant feedback of your adjustments on the digital control panel.

Perfectly fresh food with Frostmatic

The Frostmatic function activates the maximum freezing power, so your fresh produce freezes as quickly as possible. The freezer then returns to its normal setting.
