OSC5S185ES

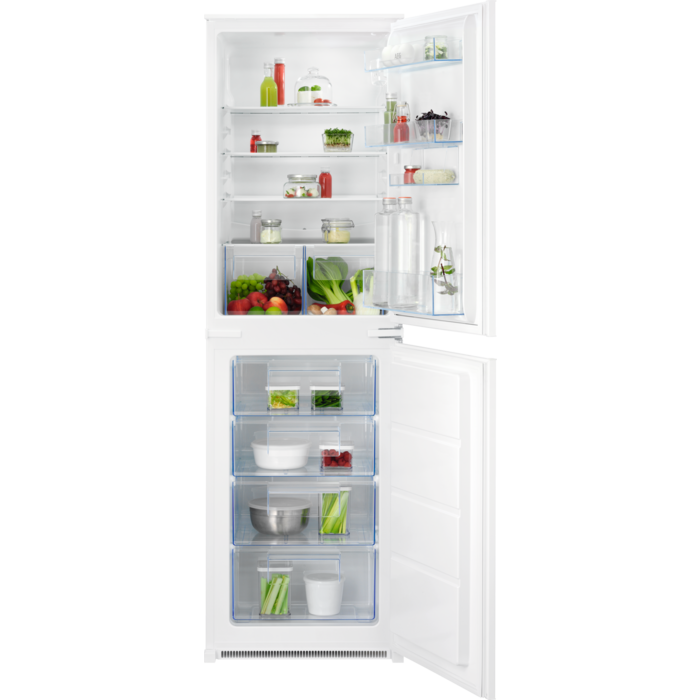

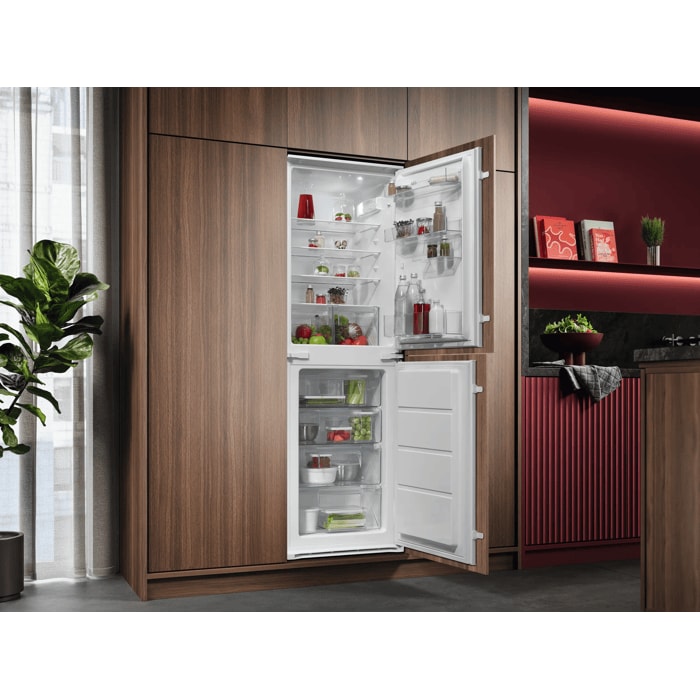

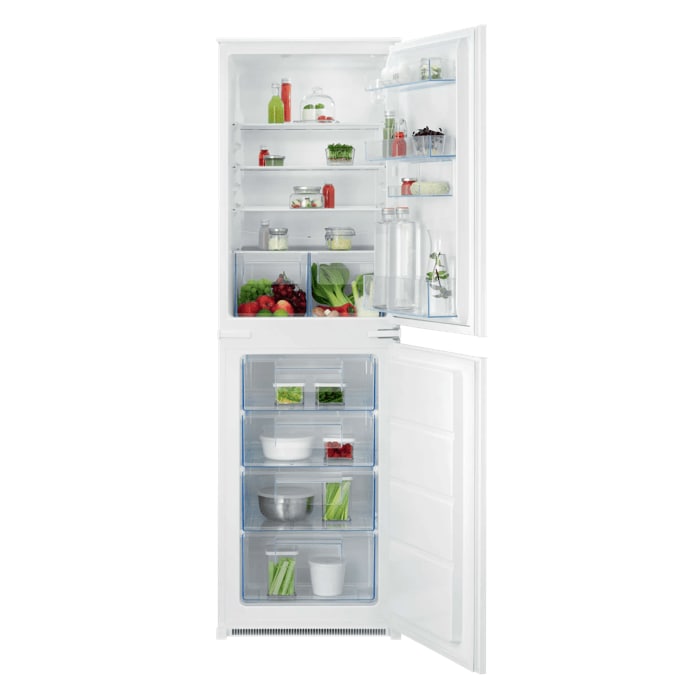

Integrated fridge freezer

Name: Integrated fridge freezer
Brand: AEG
SKU: OSC5S185ES

PDF Product Fiche

Series5000

Energy RatingE

Freezer Defrost TypeStatic Low Frost

Fridge Capacity (L)161

Freezer Capacity (L)106

Dimensions (mm) (HxWxD)1772x548x549

Fridge Light Type1 Led Integrated To Controls

Number of thermostats1

Safety Warnings

Essential precautions to ensure safe usage and installation.

Product documents

spec sheetDownload PDF

product user manualDownload PDF

pdf Product FicheDownload PDF

pdf Energy labelDownload PDF

Installation specifications

Installation chartOpen image

Connected Product

Product Data InformationOpen page

Specification

LCD touch display
Electronic temperature control
Open Door Signal: Visible & audible.
163 litres gross fridge capacity
160 litres net fridge capacity

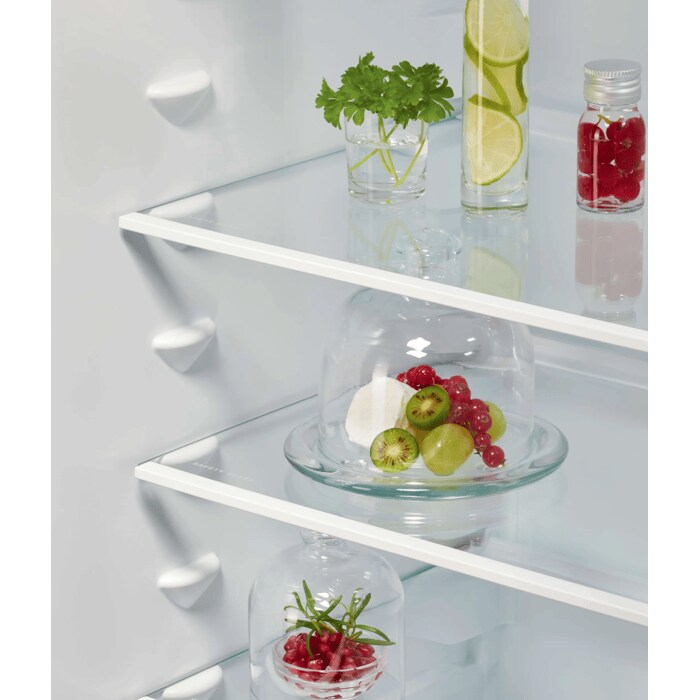

3 Full Width glass shelves

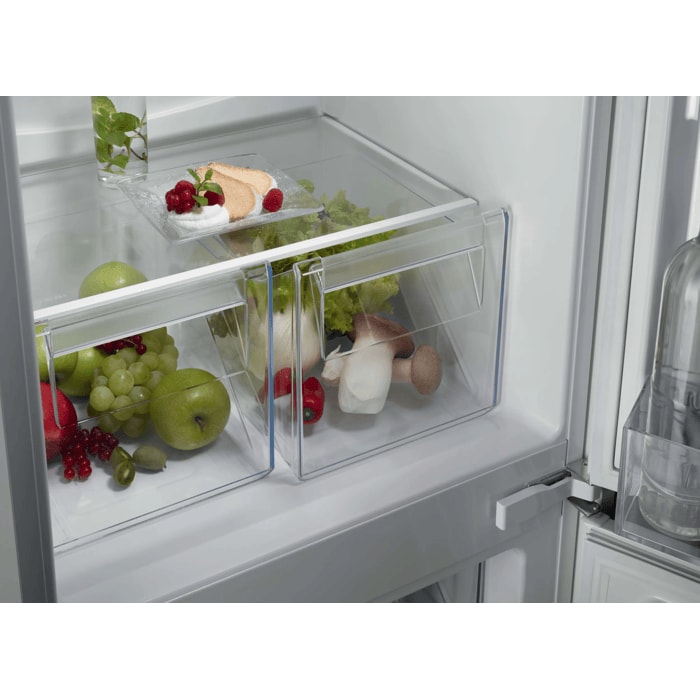

salad drawers with glass lid
1 full width covered dairy compartment

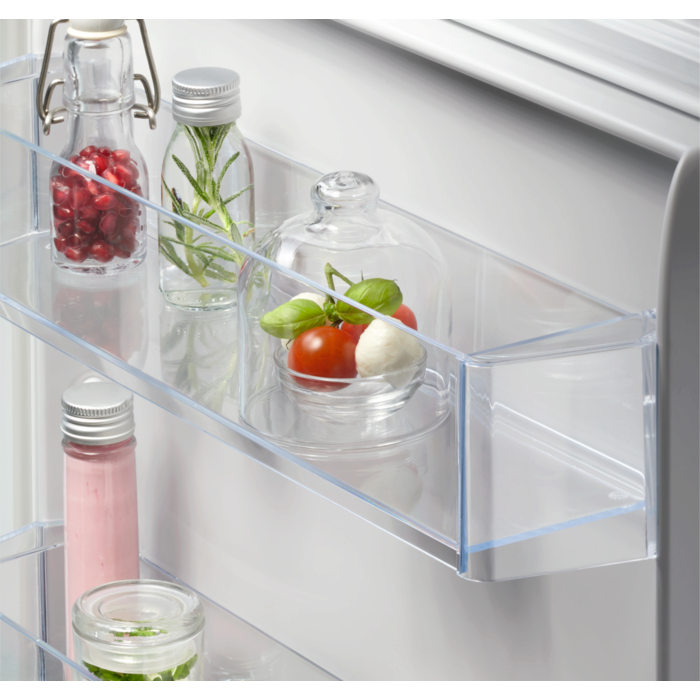

Door Shelves: Our fridge freezers come with either 2 or 3 full width door shelves.
Removable egg tray

Performance

Freezer Defrost Type: Static Low Frost
Freezer Capacity (L): 106
Noise (dB): 34
High-Temp Indicator Type: None
Fridge Defrost Type: Auto

Installation

Dimensions (mm) (HxWxD): 1772x548x549
Built-in Dimensions (mm) (HxWxD): 1780x560x550
Installation: BI Slide Door
Door Hinge Position: Right & Reversible
Cord Length (m): 2.4
Voltage (V): 230-240
Door Colour: White
Plug or Hardwired: Uk Moulded Plug
Net weight (kg): 57
Gross weight (kg): 59

Energy

Energy Rating: E
Fridge Capacity (L): 161
Frequency (Hz): 50
Minimum Ambient Temperature (°C): 10
Annual Energy Consumption (kWh): 231
Climate Class: SN-N-ST-T
Freezing Capacity (kg): 5.5
Noise Rating: B
Fridge - Recommended Temp (°C): 4
Freezer - Recommended Temp (°C): -18

Other

Product number (PNC): 925 517 001
Series: 5000
Fridge Light Type: 1 Led Integrated To Controls
Number of thermostats: 1
Freezer Light Type: None
Freezer - Number Of Drawers: 4 Full Width
Hatch Doors: No
Chiller Compartment : No
Egg Trays: None
Holiday Function: No
Fridge - Number of Shelves: 3 Full Width

ColdSense protects food by quickly restoring the temperature

ColdSense uses precise temperature sensors to rapidly return the Fridge Freezer to the right temperature after door opening and closing. This helps prevent temperature shocks and food spoilage for total food protection.

LowFrost makes defrosting easier, and needed less frequently

Efficient Fridge Freezer with advanced Low Frost technology which makes the work of defrosting easier and less often needed by using hidden cooling circuits that minimize frost build up.

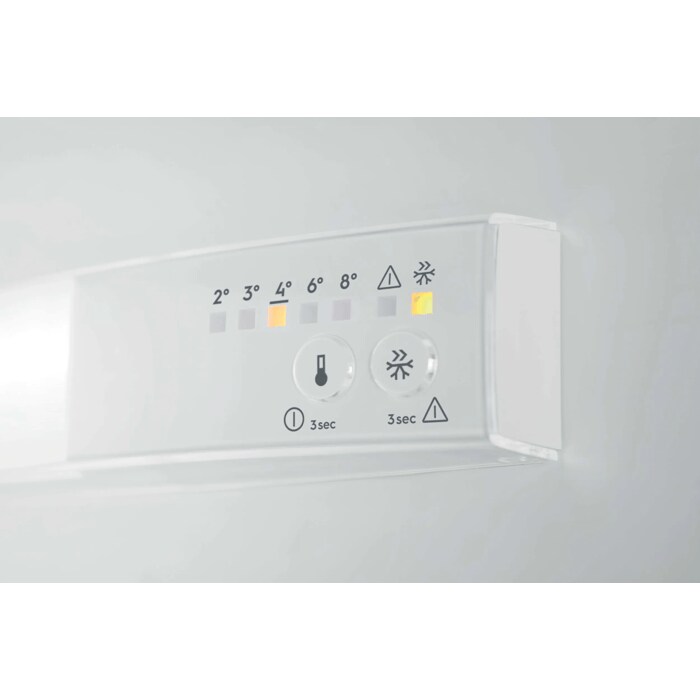

Internal Electronic Control. For cooling precision

The Internal Electronic Control feature gives you full command of the storage conditions of your food. The LED indicators show you the temperature setting clearly for convenient adjustment and control.

Perfectly fresh food with Frostmatic

The Frostmatic function activates the maximum freezing power, so your fresh produce freezes as quickly as possible. The freezer then returns to its normal setting.

LED lighting illuminates every corner

The internal LED lighting produces a discreet, soft light, shining evenly across the whole space.
