Freestanding washer dryer
LWR7196U4B914610333

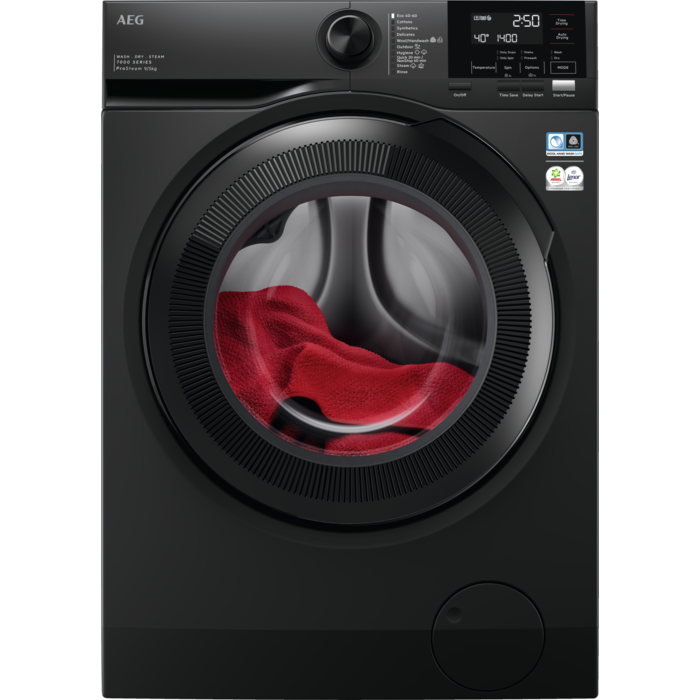

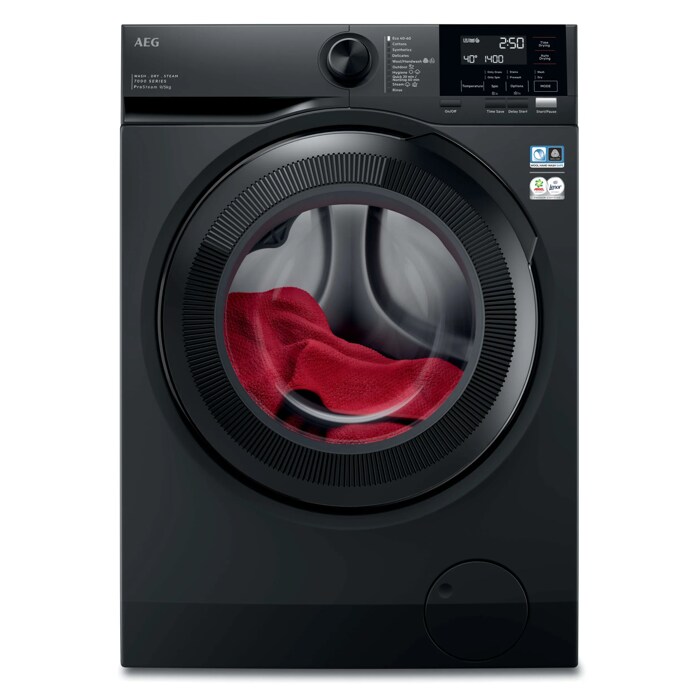

Name: Freestanding washer dryer
Brand: AEG
SKU: LWR7196U4B

PDF Product Fiche

Drying Capacity, kg5.0

Washing Capacity, kg9.0

Maximum Spin Speed, rpm1600

Design-

ProSteam®

SpecialCare Wash-to-Dry

PreciseLoad

Dual Sense

Product documents

spec sheetDownload PDF

product user manualDownload PDF

pdf Product FicheDownload PDF

pdf Energy labelDownload PDF

Installation specifications

Installation chartOpen image

Connected Product

Product Data InformationOpen page

Specification

Washing capacity: 9 kg
Drying capacity: 5.0 kg
1600 RPM spin speed
Cotton Programmes: Includes Cotton Eco, Cotton & Prewash, and Cotton drying
Synthetic Programmes: Includes synthetic wash and synthetic drying
Delicate Programmes: Includes delicate wash and delicate rinses
Wool Plus Programme: The only wool programme in the market with a cool down at the end of the wash phase preventing chill-shock when the cold rinse begins, ensuring shrinkage is minimised.
Easy iron programme: By keeping your wash load moving and using a cool down phase with cold water, this programme protects delicate and synthetic fabrics from developing permanent creases.
Delay start: Set the programme to begin at a time convenient to you
Stain Action Option: The stain option allows you to use stain remover in the pre-wash compartment of the detergent drawer, it is then added at the correct stage of the wash cycle.
Sensitive Option: Designed specifically for people who are extra sensitive to dust and pollen. Works on cotton and synthetic programmes where fabric is gently moved around and has an extra rinse option so particles are rinsed out effectively.
Aqua Control and Alarm: Aqua Control is an internal system which monitors the water level to detect leakage.
Automatic Child Safety: Keypads can be locked to ensure temperatures and programme selections cannot be changed - making certain your laundry is always safe.
A class wash performance

Performance

Washing Capacity (Kg): 9
Drying Capacity (kg): 5.0
Dryer Type: Water condense
Max Spin Speed (rpm): 1600
Drum Volume (L): 60
Motor Type: Inverter Motor+

Installation

Plug or Hardwired: U.K.
Depth max (mm): 599
Wheels/Feet: 4 adjustable feet
Cord Length (m): 1.7
Inlet Hose Length (cm): 130
Outlet Hose Length (cm): 140
Total Electricity Loading (W): 2100
Voltage (V): 230-240
Recommended fuse (A): 13
Net weight (kg): 76.5
Gross weight (kg): 78

Energy

Energy Rating (Wash&Dry): D
Noise Rating (dB): B
Energy Rating: A
Energy Consumption per 100 wash cycles (kWh): 49
Energy Consumption per 100 wash/dry cycles (kWh): 265
Noise level, dB(A) (EU 2017/1369): 76
Frequency (Hz): 50

Other

Product number (PNC): 914 610 333
Program List: Cottons, Delicates, Eco 40-60, Hygiene, OutDoor, Quick 20 Wash&Dry 60, Rinse, Steam, Synthetics, Wool\Handwash
Dimensions (mm) (HxWxD): 847x597x599(max)

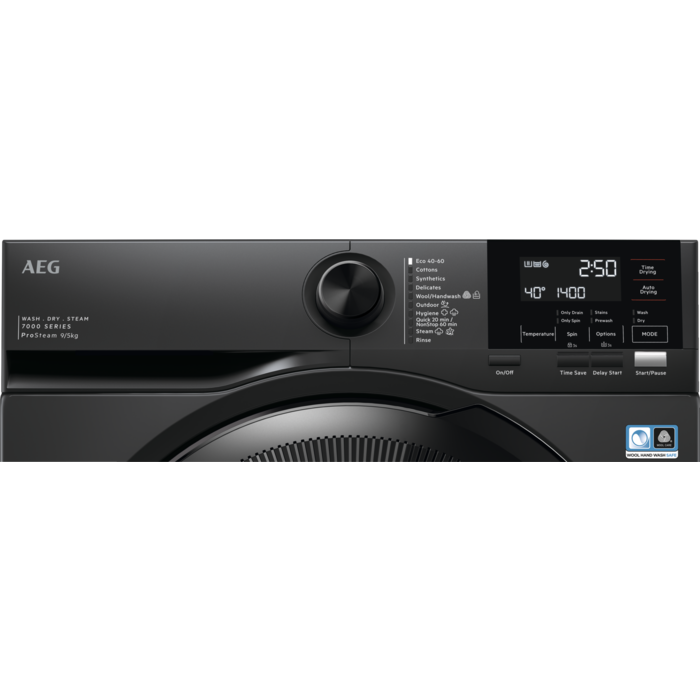

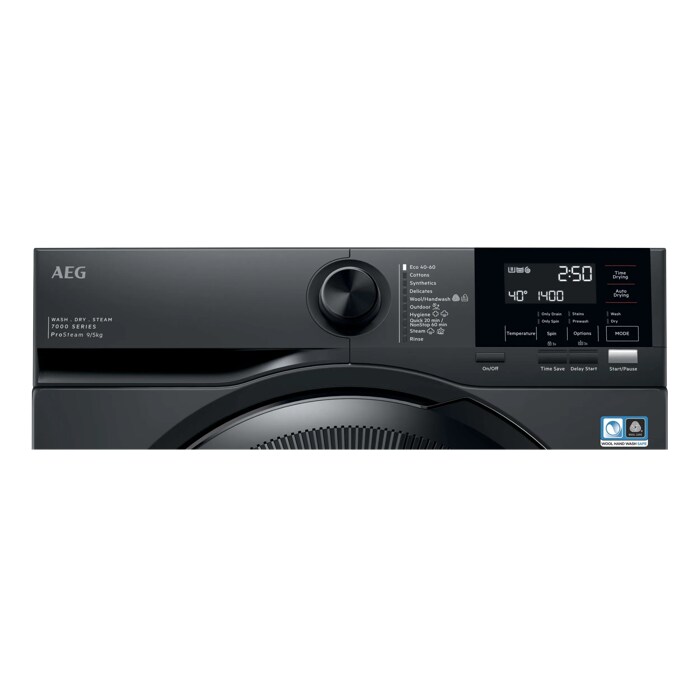

Push Button Functions: Auto Dry, DELAY START, Mode, ON/OFF, Options, Spin, Start/Pause, Temperature, Time Dry, TIME SAVE
Woolmark: woolmarkblue + woolcare ariel/lenor

GARMENTS REFRESHED*, WRINKLES REDUCED WITH STEAM REFRESH

Steam Refresh neutralises odours* and reduces wrinkles on garments, including delicates, in just 25 minutes, all without washing. And if you would like an extra boost of freshness, just add our aromatic steam fragrance, for that just washed freshness.

* External test show neutralisation of cigarette smoke odour in a Steam Refresh cycle.

Specialcare wash-to-dry. customised care even for wool and delicates

SpecialCare Wash-to-Dry adapts to each fabric type for gentle yet effective cleaning. This Woolmark Blue certified machine, washes and dries everyday items, delicates, and wool. It also restores the water protection of your outdoor garments.

PRECISELOAD— ADAPTS ENERGY AND WATER USAGE TO THE LOAD SIZE

PreciseLoad automatically adapts the cycle time, along with energy and water usage, in proportion to the size of the laundry load. This gives you customised laundry cycles that adjust energy and water use when washing and drying smaller loads.

Quick20' Wash & dry 60' - When you're in a hurry

With Quick 20’ Wash&Dry 60’ you can wash and dry a 1kg mixed load in just one hour, all in one go. You can also choose the wash only cycle and get clean clothes in as quick as 20 minutes. Quick and convenient care when you’re in a hurry.

The smooth care drum pattern is even gentler on your fabrics*

The Care drum lets garments glide smoothly thanks to its elevated cushion-like drum pattern and optimised lifter paddle. A thin film of water covers the holes during washing. Providing your fabrics with an even gentler laundry experience.

*Internal tests comparing the Care drum to the AEG ProTex drum.
